Ignition Timing Inspection

1)Connect SUZUKI scan tool to DLC (1) with ignition “OFF”.

2)Start engine and warm it up to normal operating temperature.

3)Check that all electrical loads except ignition system are switched off.

4)Check that idle speed is within specification referring to Idle Speed Inspection:K14C.

5)Fix ignition timing using “Fixed Spark” function in “Active Test” mode on scan tool.

6)Remove engine cover.

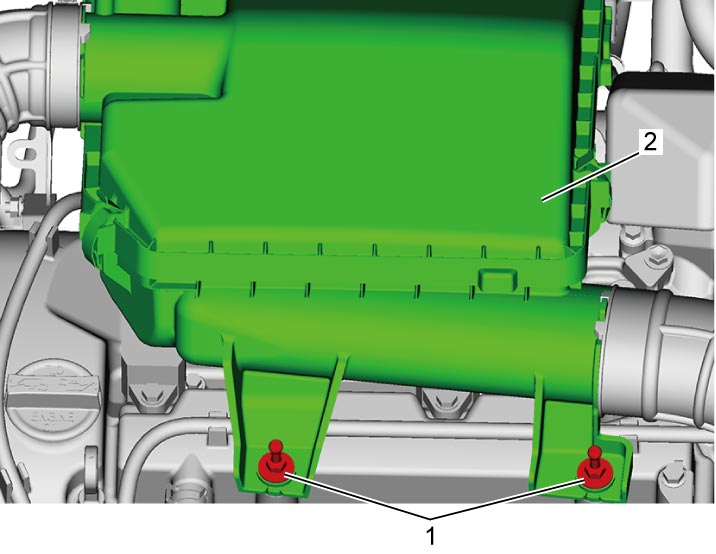

7)Remove air cleaner bolts (1) and pull up air cleaner assembly (2).

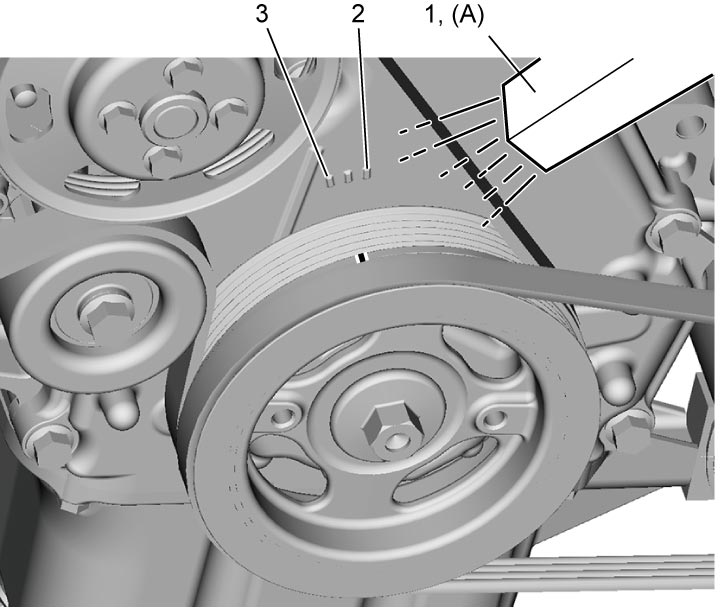

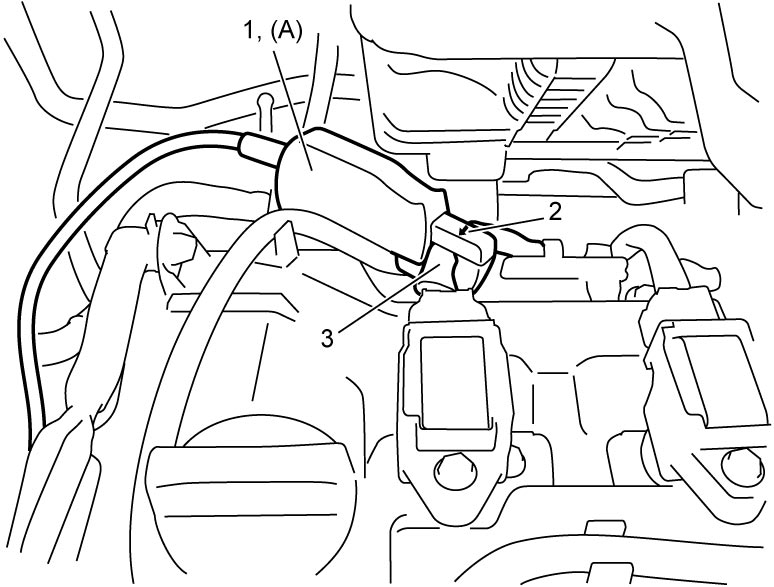

8)Grip ignition coil No.1 harness (green) (3) by probe of timing light (1) directing arrow (2) at ignition coil side, and check that ignition timing is within specification.

9)If check result is not as specified, check the following points.

10)After checking initial ignition timing, release ignition timing fixation using scan tool.

11)With engine idling (throttle opening at default position and vehicle stopped), check that ignition timing is about 5° ATDC – 5° BTDC (Constant variation within a few degrees from 5° ATDC – 5° BTDC indicates no abnormality but proves operation of ignition timing control system.) Also, check that increasing engine speed advances ignition timing.
If check result is not as specified, check the following points.

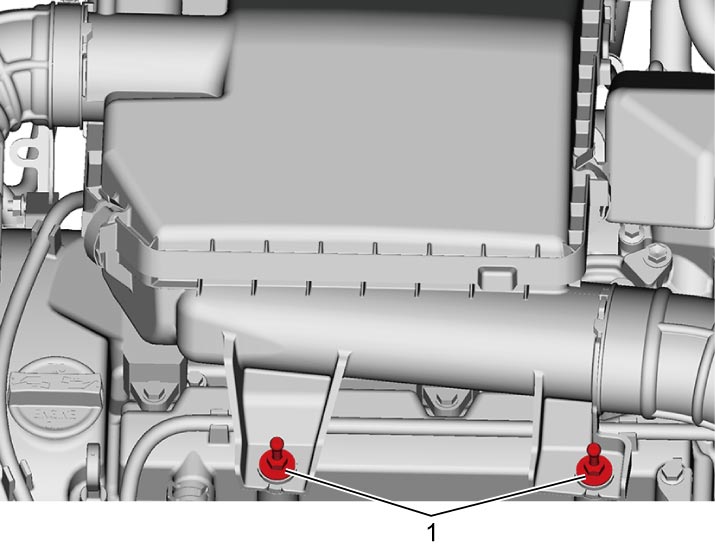

12)Tighten air cleaner bolts (1) securely.

13)Install engine cover.
