Cranking System Circuit Diagram
Precautions: General safety (00)

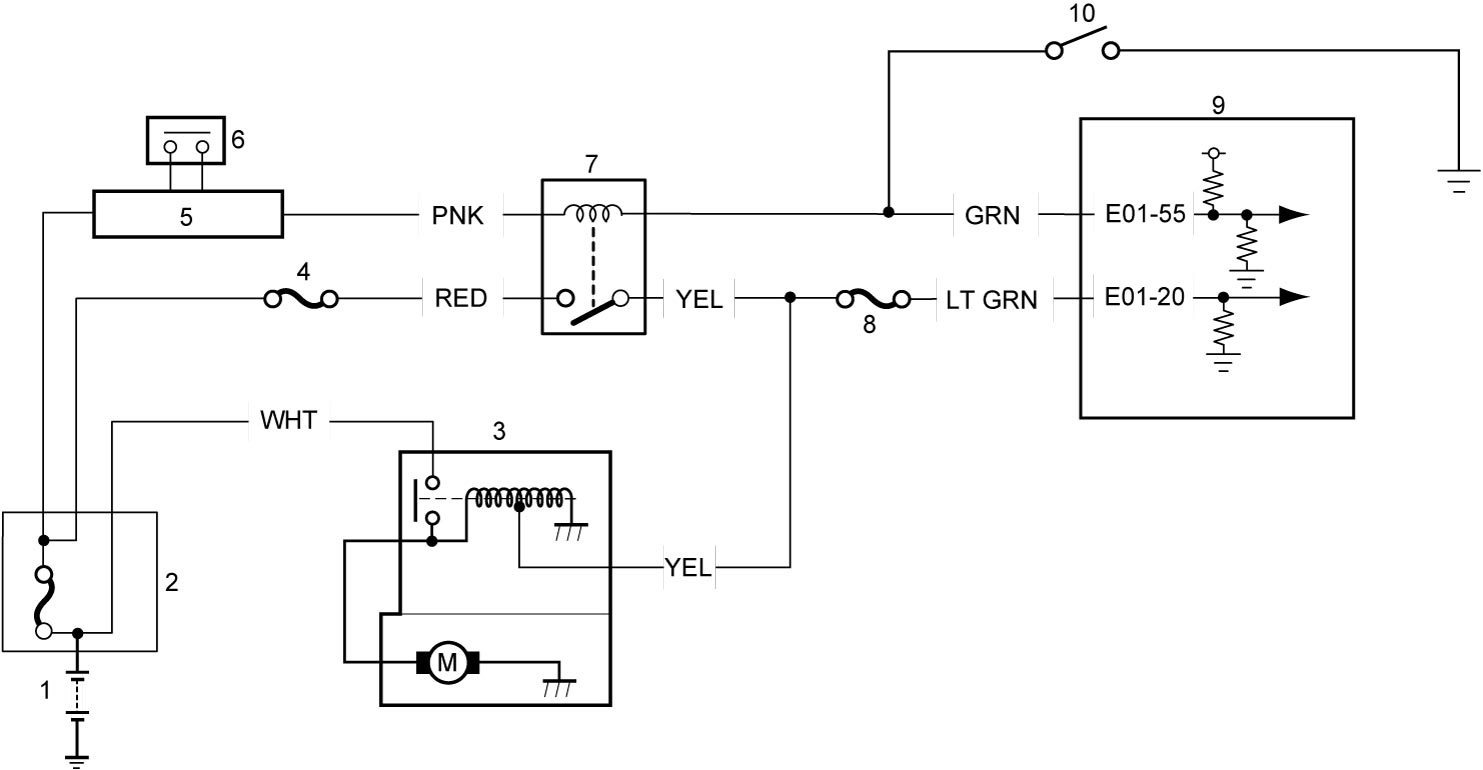

Keyless push start and non-ENG A-STOP model
| 1. | Battery | 5. | Keyless start control module | 9. | ECM |
| 2. | Main fuse box | 6. | Engine switch | 10. | CPP No.1 switch (M/T model) or transmission range sensor (A/T model) |
| 3. | Starting motor | 7. | Starting motor control relay | ||
| 4. | “ST” fuse | 8. | “ST SIG” fuse |

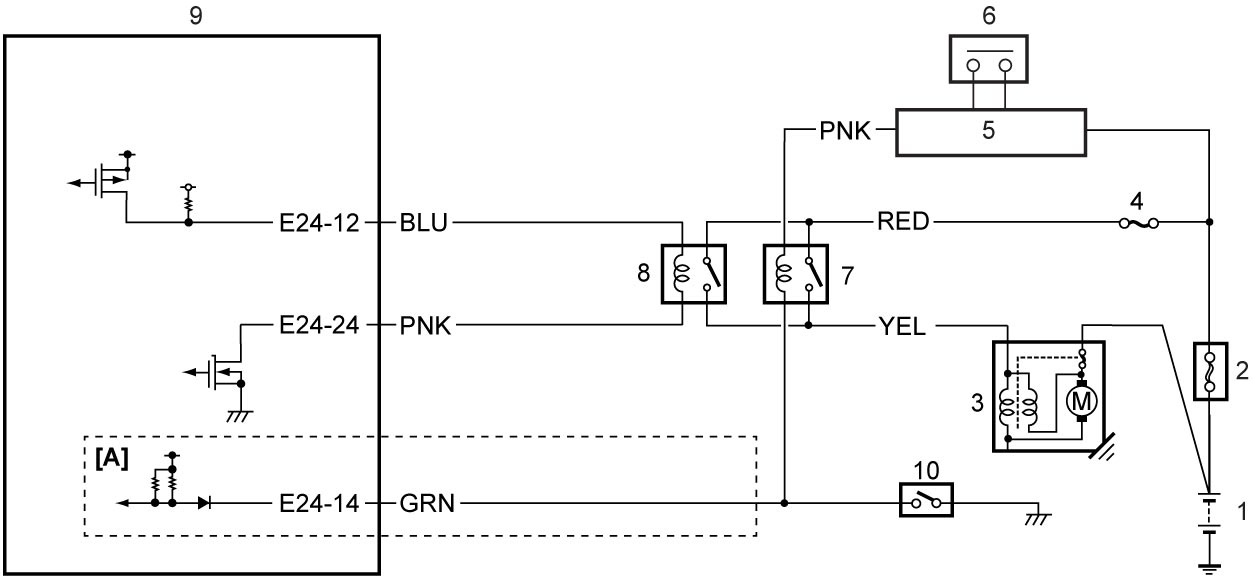

Keyless push start and ENG A-STOP model
| [A]: | M/T model | 4. | “ST” fuse | 8. | ST2 relay |
| 1. | Battery | 5. | Keyless start control module | 9. | ENG A-STOP control module |
| 2. | Main fuse box | 6. | Engine switch | 10. | CPP No.1 switch (M/T model) or transmission range sensor (A/T model) |
| 3. | Starting motor | 7. | Starting motor control relay |
