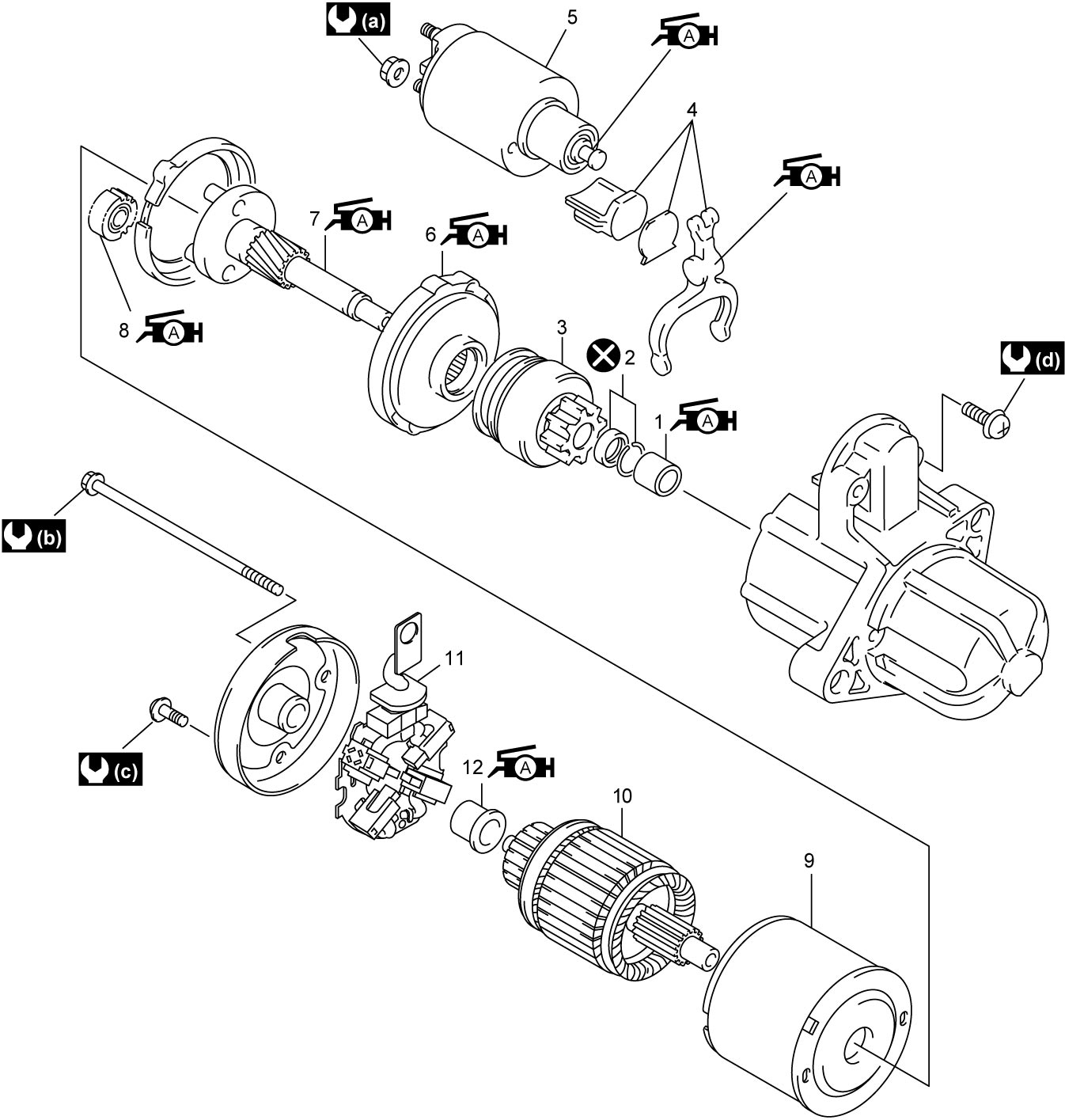

Starting Motor Components (Non-ENG A-STOP Model)
Precautions: General safety (00)
| 1. | Bushing | 7. | Planetary carrier shaft |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 2. | Pinion stop ring | 8. | Planetary gear |
 : |
6.1 N·m (0.62 kgf-m, 4.5 lbf-ft) |
| 3. | Overrunning clutch | 9. | Yoke |
 : |
3.4 N·m (0.35 kgf-m, 2.5 lbf-ft) |
| 4. | Drive lever assembly | 10. | Armature |
 : |
5.9 N·m (0.60 kgf-m, 4.5 lbf-ft) |
| 5. | Magnetic switch | 11. | Brush assembly |
 : |
Do not reuse. |
| 6. | Internal gear | 12. | Bushing |
 : |
Apply grease to sliding surface of each part. |
