Starting Motor Components
Precautions: General safety (00)

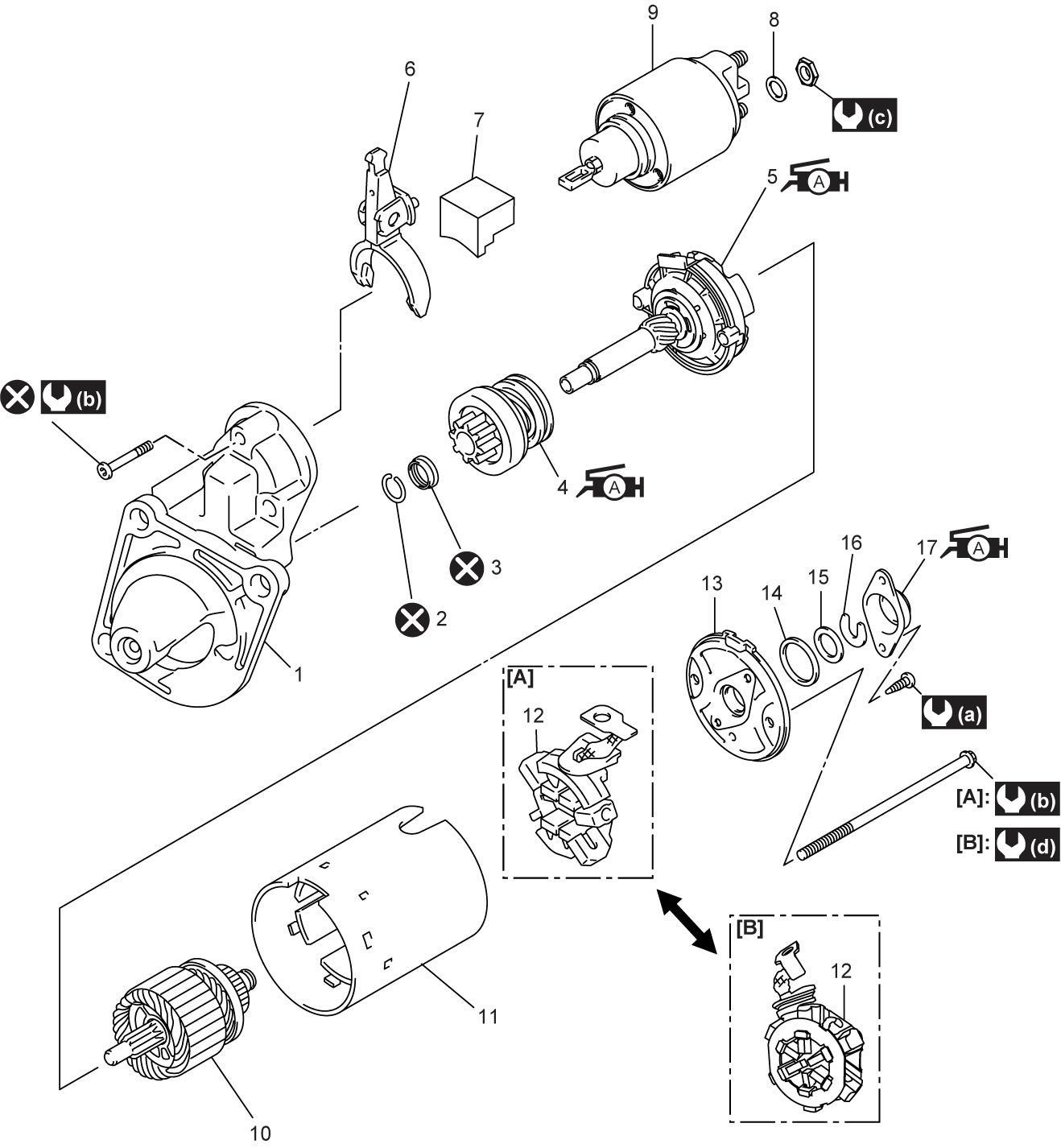

| [A]: | Non-ENG A-STOP model | 8. | Washer | 17. | Closure cap |
| [B]: | ENG A-STOP model | 9. | Magnetic switch |
 : |
1.6 N·m (0.16 kgf-m, 1.5 lbf-ft) |
| 1. | Starter housing | 10. | Armature |
 : |
7.5 N·m (0.76 kgf-m, 5.5 lbf-ft) |
| 2. | Pinion stop ring | 11. | Yoke |
 : |
9.0 N·m (0.92 kgf-m, 7.0 lbf-ft) |
| 3. | Retainer | 12. | Brush |
 : |
4.8 N·m (0.49 kgf-m, 3.5 lbf-ft) |
| 4. | Overrunning clutch | 13. | Starter end frame |
 : |
Apply grease 99000-25011 to sliding surface of each part. |
| 5. | Gear shaft | 14. | Sealing ring |
 : |
Do not reuse. |
| 6. | Drive lever | 15. | Shim | ||
| 7. | Seal rubber | 16. | Retaining washer |
