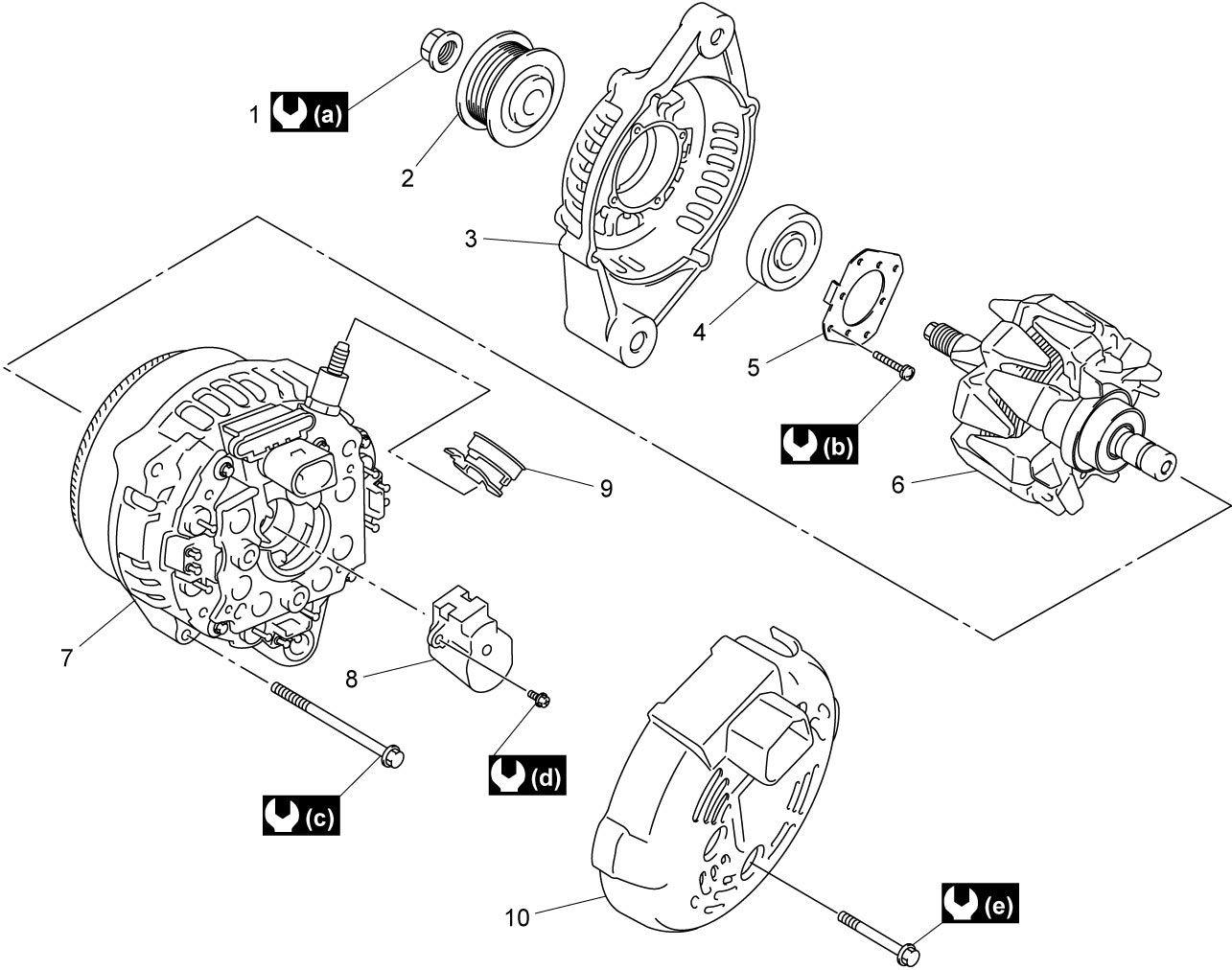

Generator Components
Precautions: Precautions for Handling Battery · Precautions for Replacing Battery · General safety (00)
| 1. | Pulley nut | 6. | Rotor |
 : |
130 N·m (13.3 kgf-m, 96.0 lbf-ft) |
| 2. | Pulley | 7. | Stator assembly |
 : |
2.3 N·m (0.23 kgf-m, 2.0 lbf-ft) |
| 3. | Drive end frame | 8. | Brush holder assembly |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 4. | Bearing | 9. | Bushing |
 : |
2.0 N·m (0.20 kgf-m, 1.5 lbf-ft) |
| 5. | Bearing retainer | 10. | Rear end cover |
 : |
4.5 N·m (0.46 kgf-m, 3.5 lbf-ft) |
