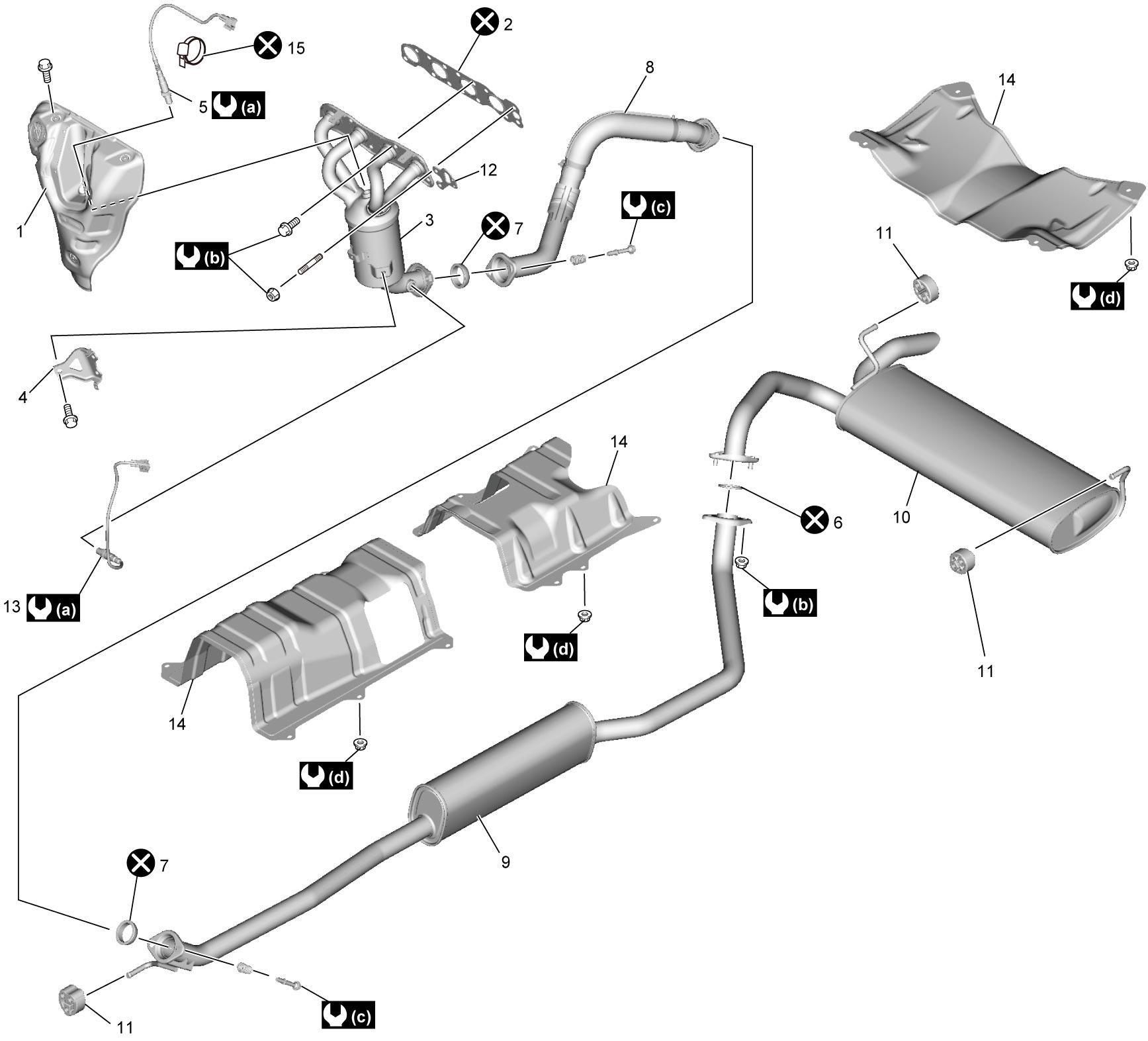

Exhaust System Components
Precautions: General safety (00)
| 1. | Exhaust manifold cover | 8. | Exhaust No.1 pipe | 15. | Clamp |
| 2. | Exhaust manifold gasket | 9. | Exhaust center pipe |
 : |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 3. | Exhaust manifold | 10. | Muffler |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
| 4. | Exhaust manifold stiffener | 11. | Mounting |
 : |
43 N·m (4.4 kgf-m, 32.0 lbf-ft) |
| 5. | HO2S-1 | 12. | Engine hook |
 : |
2.4 N·m (0.24 kgf-m, 2.0 lbf-ft) |
| 6. | Gasket | 13. | HO2S-2 |
 : |
Do not reuse. |
| 7. | Seal ring | 14. | Heat insulator |
