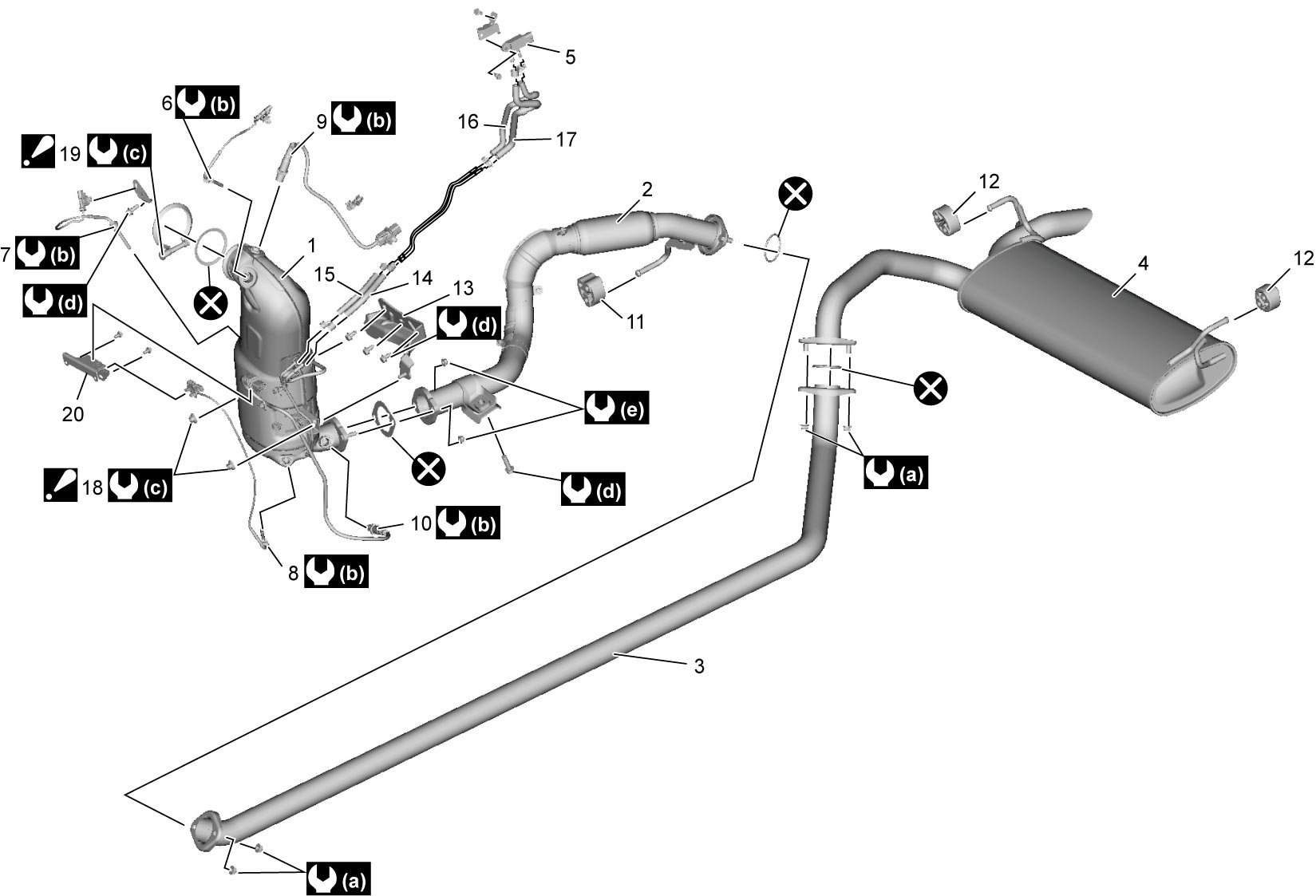

Exhaust System Components
Precautions: General safety (00)
| 1. | DPF® | 10. | A/F sensor-2 |
 19. |
DPF® clamp : For installation, refer to DPF® Removal and Installation:D16AA. |
| 2. | Exhaust No.1 pipe | 11. | Mounting No.1 | 20. | Sensor bracket |
| 3. | Exhaust center pipe | 12. | Mounting No.2 |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
| 4. | Muffler | 13. | DPF® bracket |
 : |
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 5. | DPF® differential pressure sensor | 14. | Differential pressure sensor hose No.4 |
 : |
5.0 N·m → 25 N·m (0.51 kgf-m → 2.5 kgf-m, 4.0 lbf-ft → 18.5 lbf-ft) |
| 6. | EGT sensor-1 | 15. | Differential pressure sensor hose No.3 |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 7. | EGT sensor-2 | 16. | Differential pressure sensor hose No.2 |
 : |
32 N·m (3.3 kgf-m, 23.0 lbf-ft) |
| 8. | EGT sensor-3 | 17. | Differential pressure sensor hose No.1 |
 : |
Do not reuse. |
| 9. | A/F sensor-1 |
18. |
DPF® clamping band nut : For installation, refer to DPF® Removal and Installation:D16AA. |
