Rear Suspension Components
Precautions: Precautions for Handling of Rear Shock Absorber · Precautions for Suspension · General safety (00)

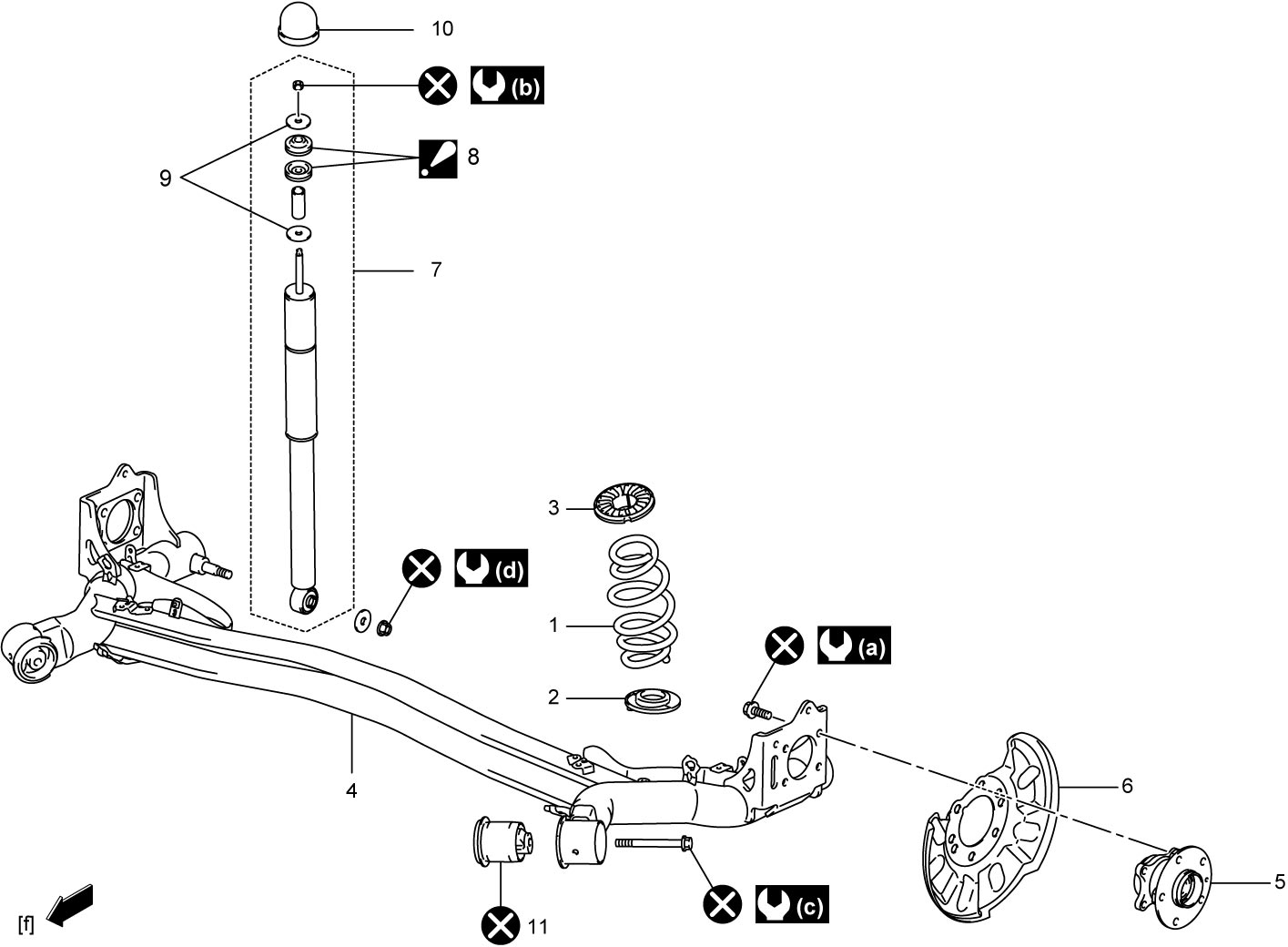

| [f]: | Forward | 6. | Brake dust cover |
 : |
88 N·m (9.0 kgf-m, 65.0 lbf-ft) |
| 1. | Rear coil spring | 7. | Rear shock absorber |
 : |
30 N·m (3.1 kgf-m, 22.5 lbf-ft) |
| 2. | Rear spring lower seat |
 8. |
Shock absorber upper bushing : For correct installing direction of shock absorber upper bushings, refer to Rear Shock Absorber Removal and Installation. |
 : |
100 N·m (10.2 kgf-m, 74.0 lbf-ft) |
| 3. | Rear spring upper seat |
9. |
Shock absorber upper washer |
 : |
90 N·m (9.2 kgf-m, 66.5 lbf-ft) |
| 4. | Rear axle | 10. | Shock absorber upper cap |
 : |
Do not reuse. |
| 5. | Wheel hub assembly | 11. | Rear axle bushing |
