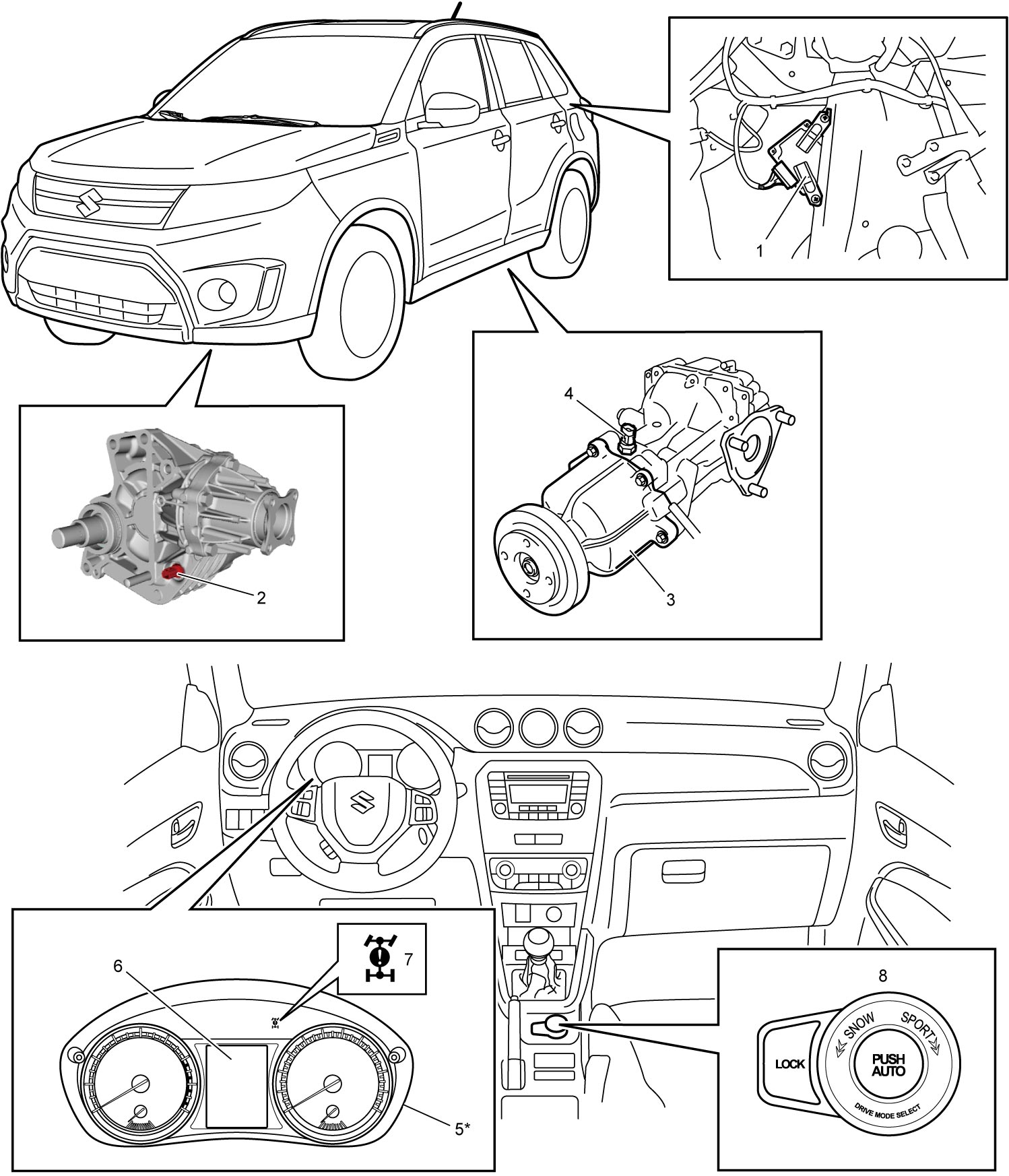

4WD Control System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| 1. | 4WD control module | 4. | Rear drive coupling air temperature sensor | 7. | 4WD warning light |
| 2. | Transfer oil temperature sensor | 5. | Combination meter | 8. | Driving mode switch |
| 3. | Rear drive coupling assembly | 6. | Information display |
