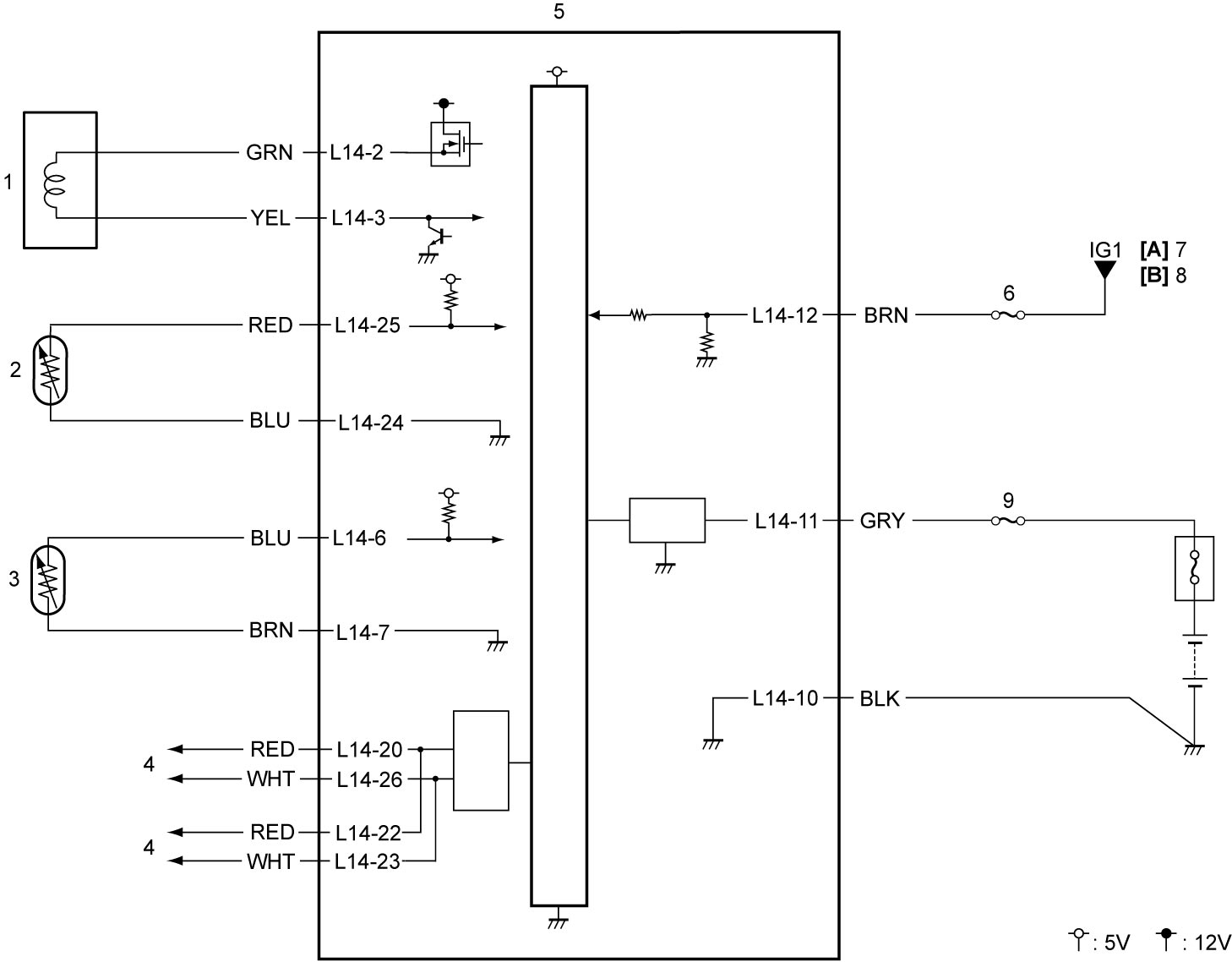

4WD Control System Circuit Diagram
Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)
| [A]: | Ignition switch model | 3. | Transfer oil temperature sensor | 7. | To ignition switch |
| [B]: | Keyless push start model | 4. | To other control modules
•M16A model: CAN Communication System Circuit Diagram:M16A Model
•K14C model: CAN Communication System Circuit Diagram:K14C Model •D16AA model: CAN Communication System Circuit Diagram:D16AA Model |
8. | To IG1 relay |
| 1. | Rear drive coupling unit | 5. | 4WD control module | 9. | “4WD” fuse |
| 2. | Rear drive coupling air temperature sensor | 6. | “IG1 SIG” fuse |
Terminal Arrangement of 4WD Control Module

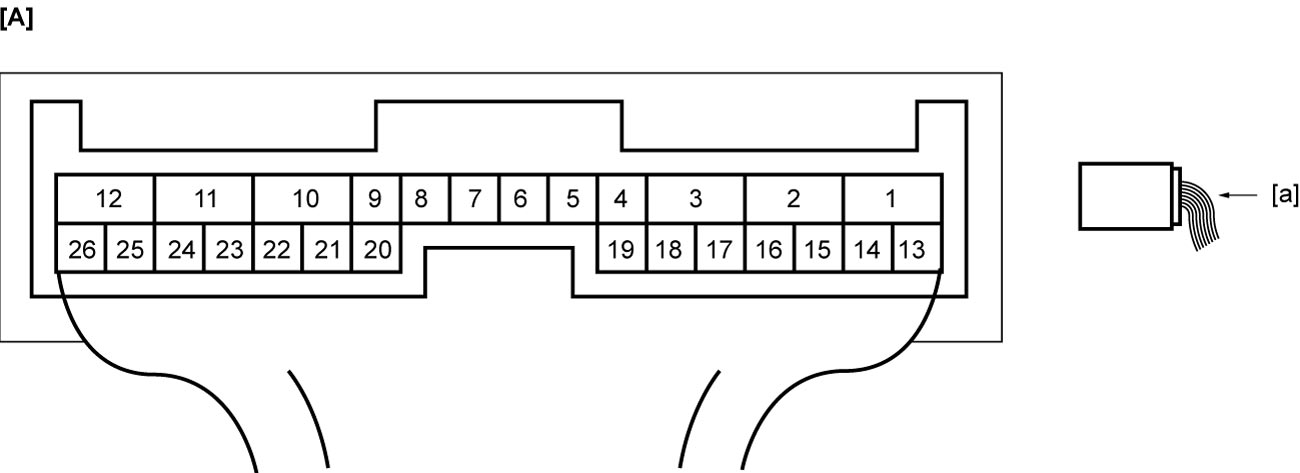

| [A]: | 4WD control module connector (View: [a]) |
