Driving Mode Switch Removal and Installation
Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)
Removal

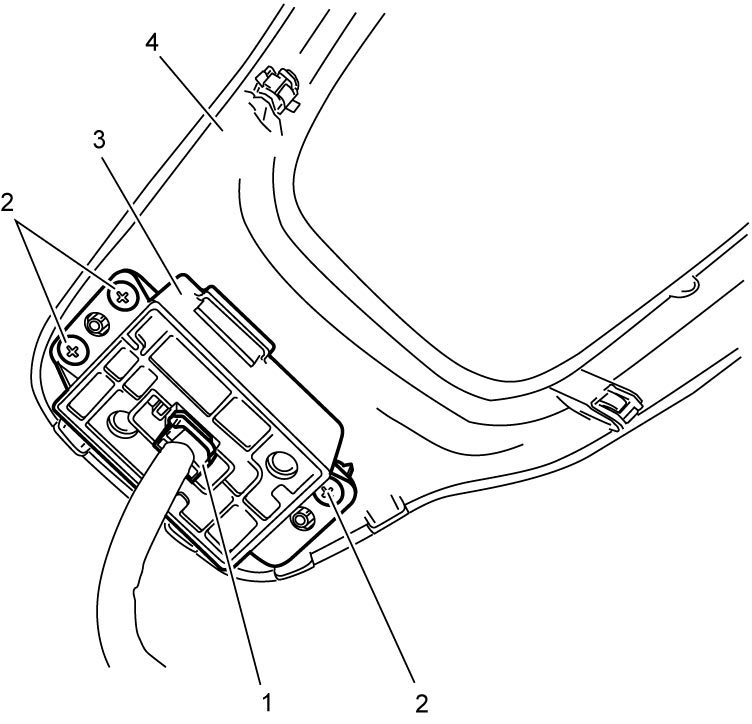

1)Remove floor console front ornament.
2)Disconnect driving mode switch connector (1).
3)Remove screws (2), and then remove driving mode switch (3) from floor console front ornament (4).
Installation
Reverse removal procedure.
