Rear Drive Coupling Air Temperature Sensor Inspection

Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)

1)Remove rear drive coupling air temperature sensor.

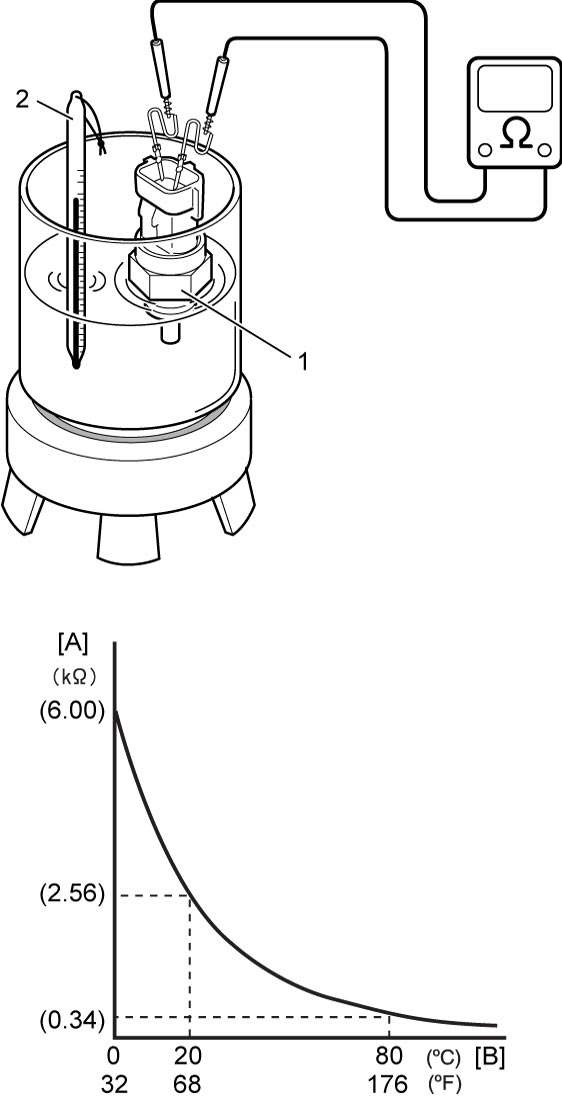

2)Warm sensing part of rear drive coupling air temperature sensor as shown.

3)Check that resistance decreases as temperature rises in such characteristic as shown.
If check result is not as specified, replace rear drive coupling air temperature sensor.

[A]:	Resistance	2.	Temperature gauge
[B]:	Temperature
