Rear Drive Coupling Assembly Inspection
Precautions: Precautions for Diagnosing Trouble · Precautions for Driveline / Axle · General safety (00)
•Check rear drive coupling assembly for oil leakage. If leakage exists, correct it.

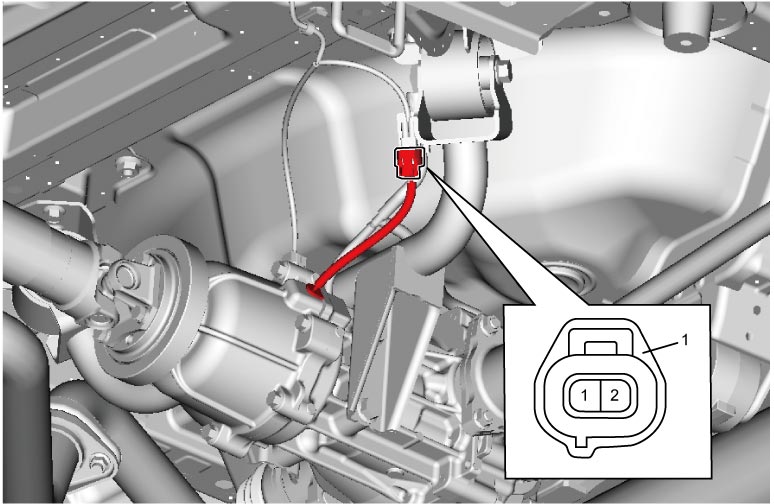

•Measure resistance between terminal “1” and terminal “2” of rear drive coupling unit connector (1).
If resistance is out of specified range, check rear drive coupling unit wire harness for open or short and if rear drive coupling unit wire harness is in good condition, replace rear drive coupling unit.
•Measure resistance between terminal “1” and terminal “2” of rear drive coupling unit connector (1).
If resistance is out of specified range, check rear drive coupling unit wire harness for open or short and if rear drive coupling unit wire harness is in good condition, replace rear drive coupling unit.
Rear drive coupling unit resistance
2 – 3 Ω
