Transfer Oil Level Check
Precautions: Precautions for Driveline / Axle · General safety (00)
1)Hoist vehicle.

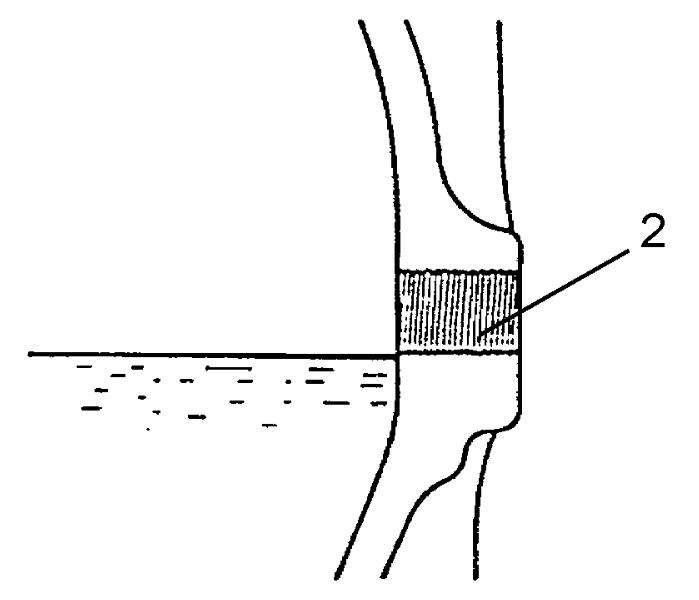

2)Remove transfer oil level / filler plug (1), check for oil contamination, and that the oil is just below the oil level / filler plug hole (2).
If oil is excessively dirty or insufficient, replace oil or add specified oil up to plug hole.
If oil is excessively dirty or insufficient, replace oil or add specified oil up to plug hole.

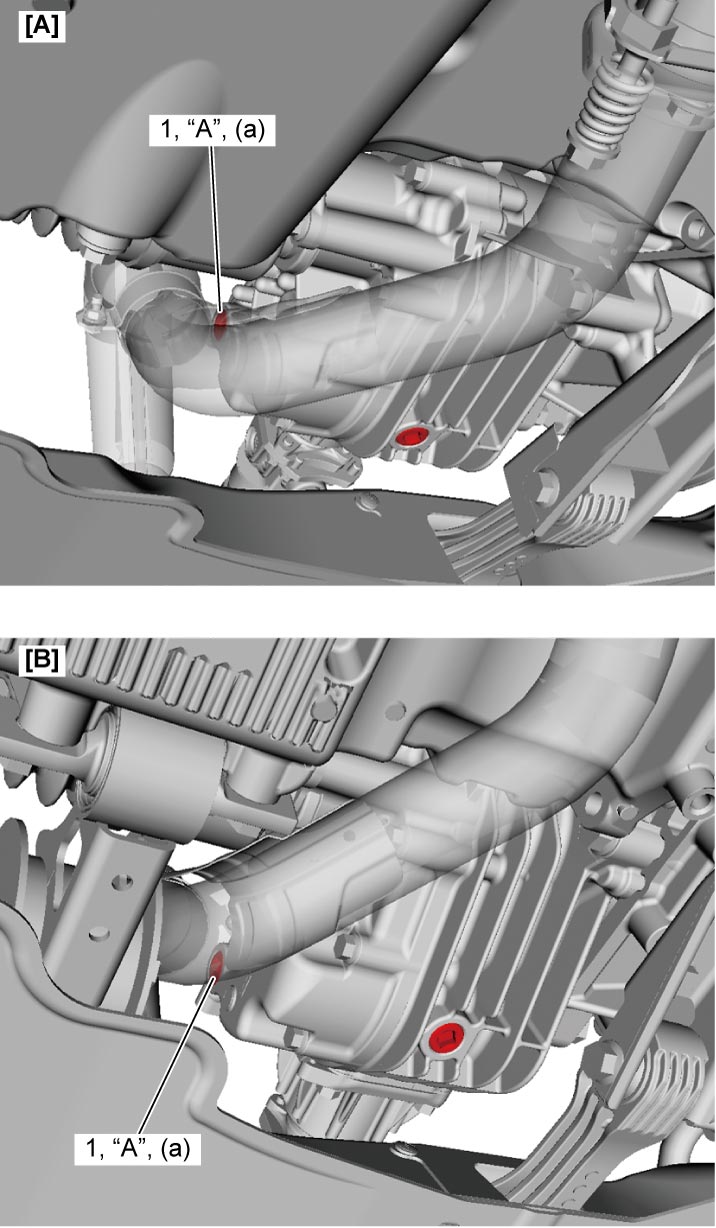

3)Apply sealant to thread of level / filler plug, and then tighten it to specified torque.
If torque wrench space is not enough, remove exhaust No.1 pipe.
If torque wrench space is not enough, remove exhaust No.1 pipe.
•M16A model:
•K14C model:
•D16AA model:
•K14C model:
•D16AA model:
| [A]: | Petrol model | [B]: | Diesel model |
