Transfer Oil Change

Precautions: Precautions for Driveline / Axle · General safety (00)

1)Hoist vehicle.

2)Remove transfer oil level / filler plug (1).

3)Remove transfer oil drain plug (2), and drain oil.

4)Apply sealant to thread of transfer oil drain plug, and tighten it to specified torque.

“A”: Sealant 99000–31260 (SUZUKI Bond No.1217G)

Tightening torque

Transfer oil drain plug (a): 23 N·m (2.3 kgf-m, 17.0 lbf-ft)

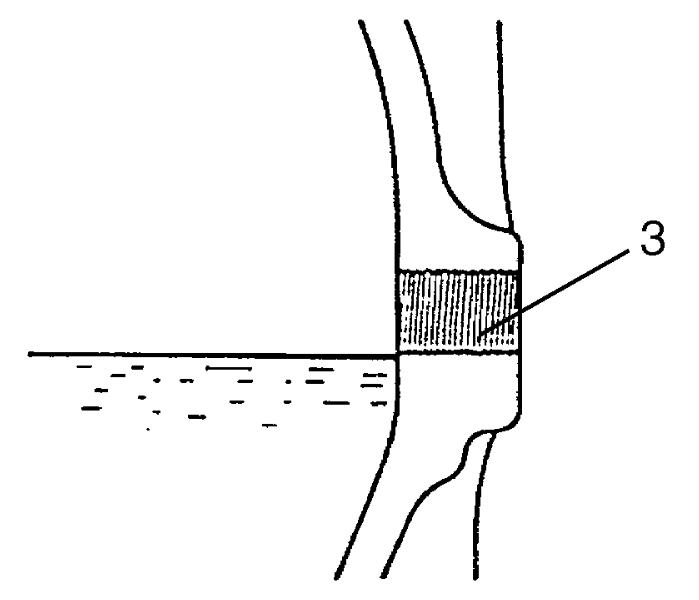

5)Replenish transfer with new specified oil up to oil level / filler plug hole (3).

NOTE:

•Hypoid gear oil must be used for transfer.
•It is highly recommended to use “SUZUKI GEAR OIL 75W-85”.

Transfer oil specification

SUZUKI GEAR OIL 99000-22B30

API GL-5 (For SAE classification, refer to viscosity chart.)

Viscosity chart

[a]:	Outside air temperature

Transfer oil capacity

Reference: 0.88 – 0.98 liters (1.86/1.55 – 2.07/1.72 US/Imp. pt)

6)Apply sealant to thread of transfer oil level / filler plug, and then tighten it to specified torque.
If torque wrench space is not enough, remove exhaust No.1 pipe.

•M16A model:

•K14C model:

•D16AA model:

“A”: Sealant 99000–31260 (SUZUKI Bond No.1217G)

Tightening torque

Transfer oil level / filler plug (b): 23 N·m (2.3 kgf-m, 17.0 lbf-ft)

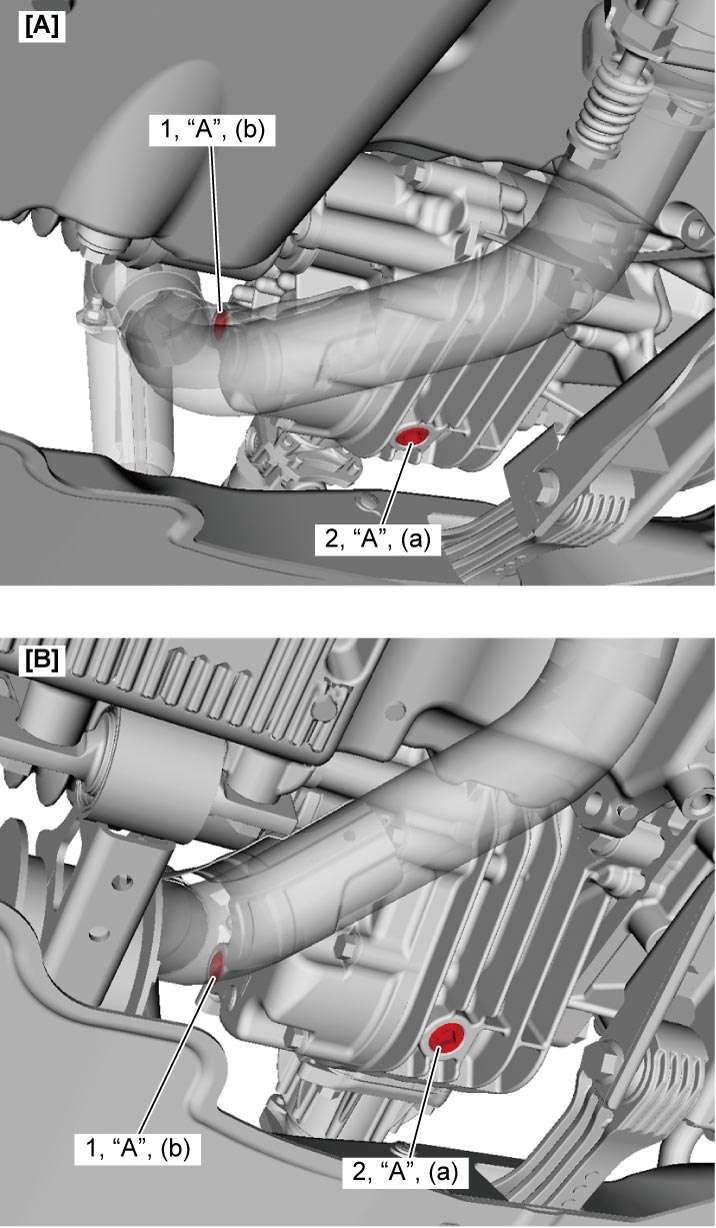

[A]:

Petrol model

[B]:

Diesel model
