Transfer Oil Temperature Sensor Inspection
Precautions: Precautions for Driveline / Axle · General safety (00)

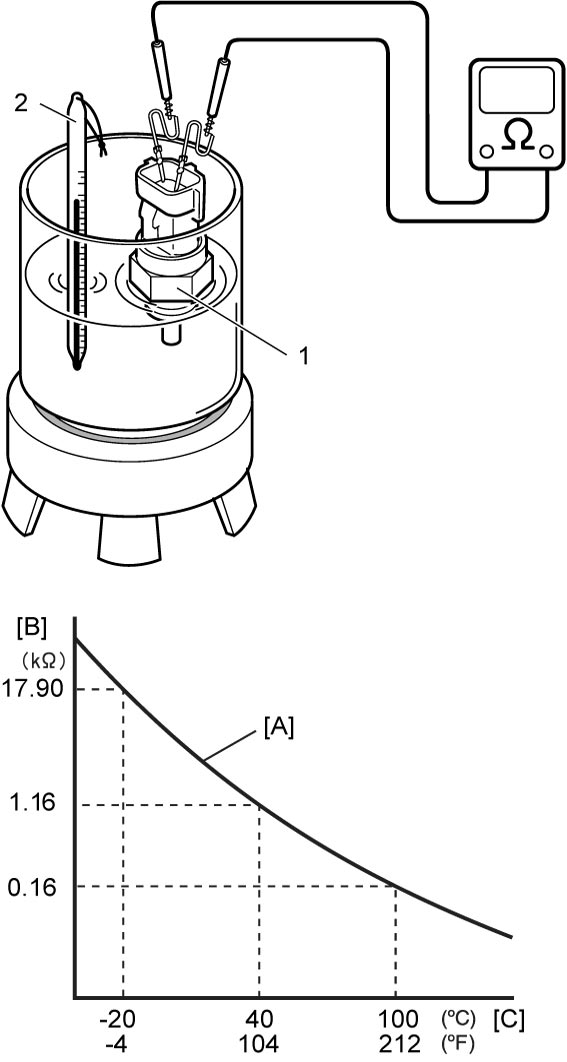

Warm transfer oil temperature sensor (1), as shown in figure, and check that resistance decreases as temperature rises.
| [A]: | Normal | [C]: | Temperature |
| [B]: | Resistance | 2. | Temperature gauge |
