Transfer Oil Temperature Sensor Removal and Installation

Precautions: Precautions for Driveline / Axle · General safety (00)

Removal
1)Hoist vehicle.
2)Drain transfer oil. icon

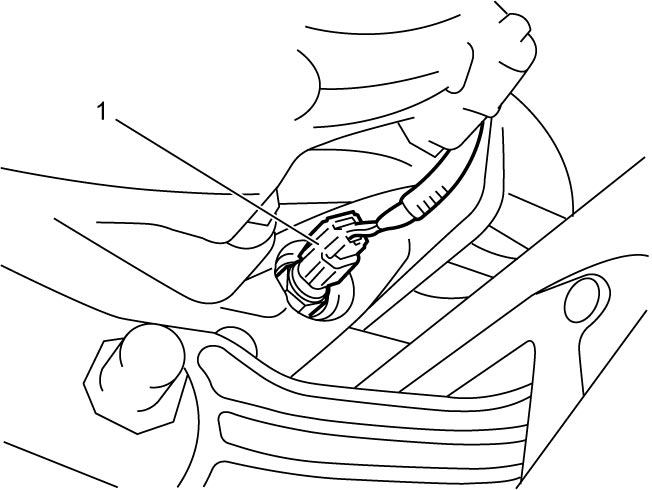

3)Disconnect transfer oil temperature sensor connector (1), and remove transfer oil temperature sensor (2).
Installation
Reverse removal procedure noting the following points.
•Use new O-ring.
•Tighten transfer oil temperature sensor to specified torque.
Tightening torque
Transfer oil temperature sensor: 12 N·m (1.2 kgf-m, 9.0 lbf-ft)
