Propeller Shaft On-Vehicle Inspection

Precautions: Precautions for Driveline / Axle · General safety (00)

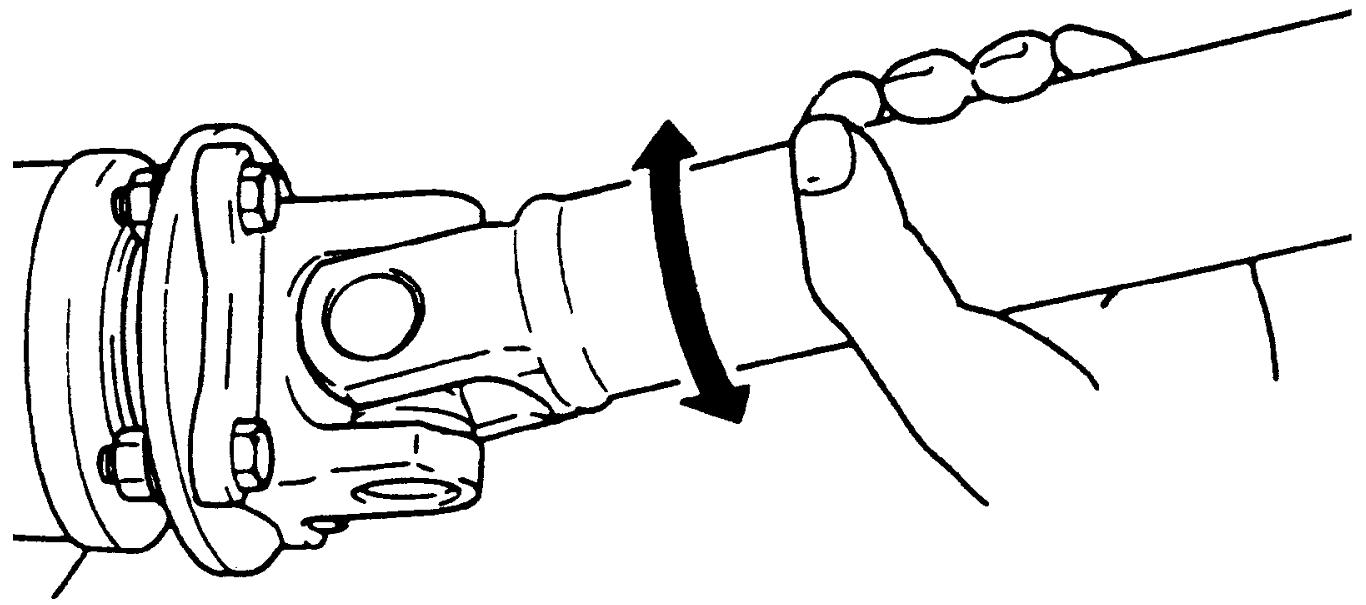

Propeller Shaft Joint

If universal joint and/or ball joint are suspected of producing noise, check them for wear or damage. If any abnormalities are found, replace propeller shaft assembly with a new one.

NOTE:

Noise coming from universal joint(s) of propeller shaft can be distinguished from other noises because rhythm of chattering or rattling is in step with cruising speed. Noise is pronounced particularly on standing start or in coasting condition (when braking effect of engine is showing in the drive line).

Propeller Shaft Center Bearing

While the vehicle is hoisted, check propeller shaft bearings by rotating propeller shaft to identify where the noise is coming from. If any abnormalities are found, replace propeller shaft assembly with a new one.
