Propeller Shaft Inspection
Precautions: Precautions for Driveline / Axle · General safety (00)
Propeller Shaft Runout

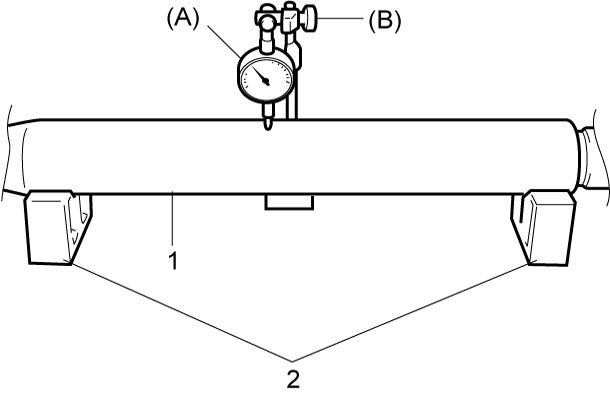

Use dial gauge to check runout of propeller shaft (1). If any abnormalities are found, replace propeller shaft assembly with a new one.
Propeller shaft runout
Limit: 0.7 mm (0.028 in.)
| 2. | V-block |
