Brake Fluid Level Switch Inspection
Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)
Check continuity between terminals of brake fluid level switch connector (1). If check result is not as specified, replace reservoir.
Brake fluid level switch specification
MAX position (float up): No continuity
MIN position (float down): Continuity exists

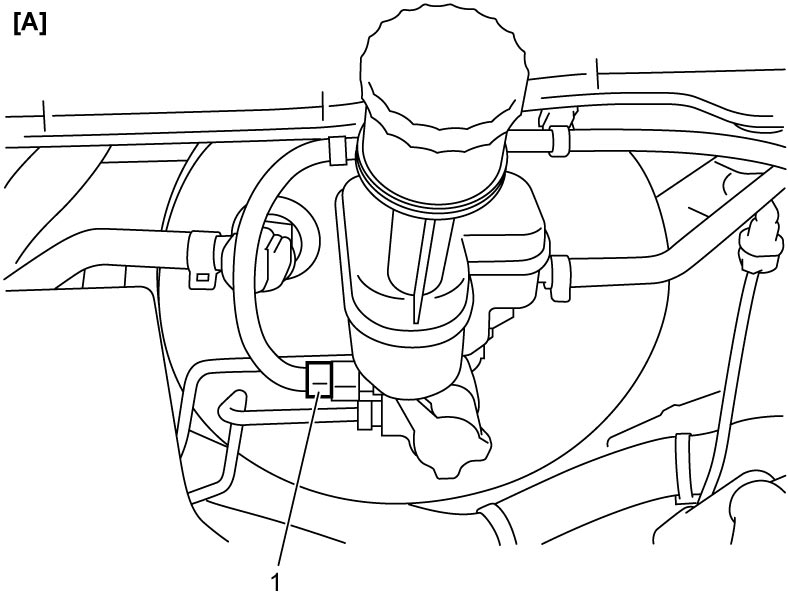

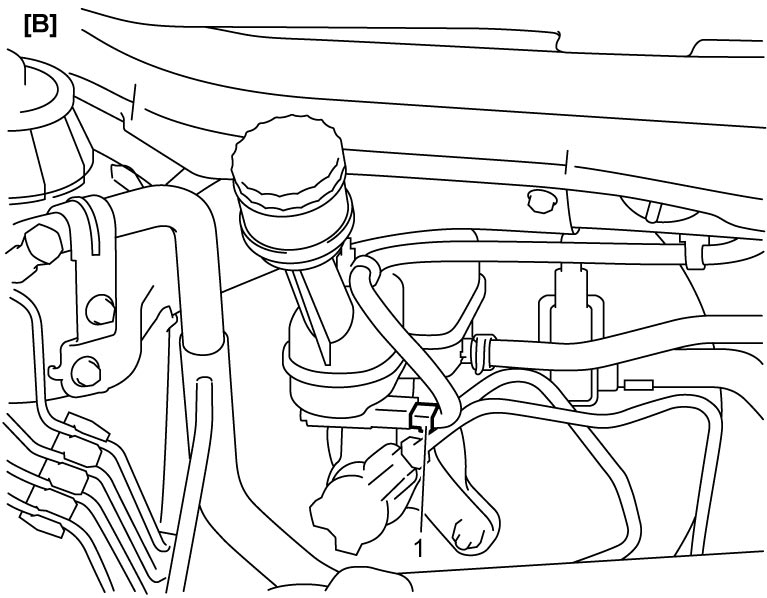

| [A]: | LHD | [B]: | RHD |
