Brake Pedal Components
Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)

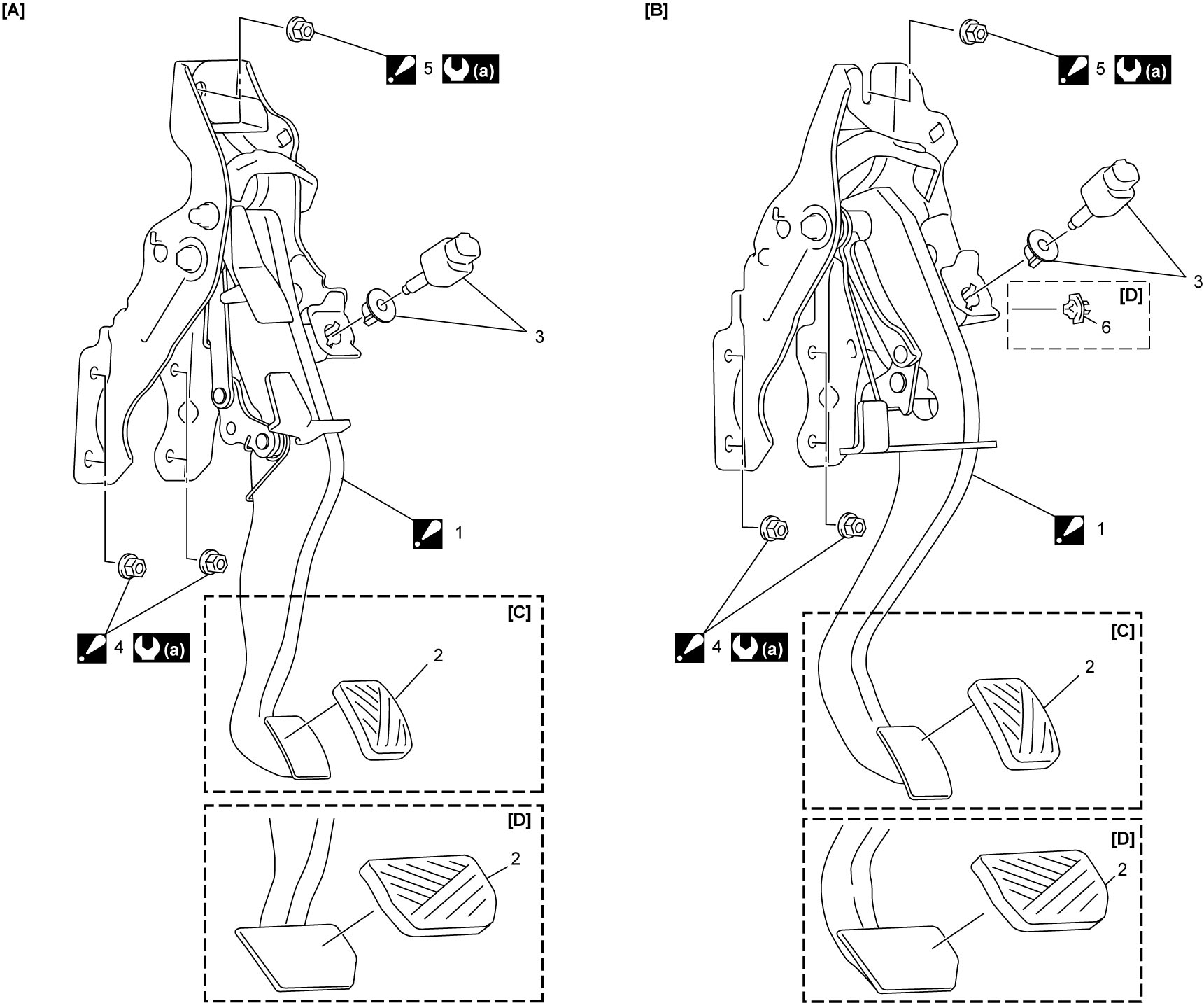

| [A]: | LHD |
 1. |
Brake pedal assembly : Do not disassemble. |
5. |
Brake pedal bracket nut : Tighten brake booster nut and brake pedal bracket nut in this order. |
| [B]: | RHD | 2. | Pedal pad | 6. | Clamp |
| [C]: | M/T model | 3. | Brake light switch |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| [D]: | A/T model and twin clutch system model |
4. |
Brake booster nut : Tighten brake booster nut and brake pedal bracket nut in this order. |
