Brake Pedal Travel Inspection

Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)

NOTE:

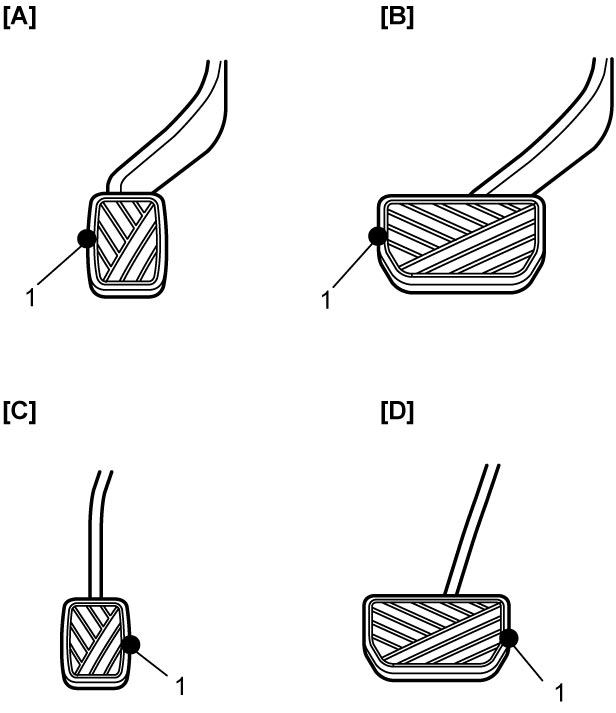

The brake pedal-to-carpet clearance must be measured between the specified points that vary with vehicle specification. Select the appropriate measuring point (1) according to the figure below.

[A]:	LHD-M/T model	[C]:	RHD-M/T model
[B]:	LHD-A/T model and LHD-twin clutch system model	[D]:	RHD-A/T model and RHD-twin clutch system model

1)Start engine.

2)Depress brake pedal a few times.

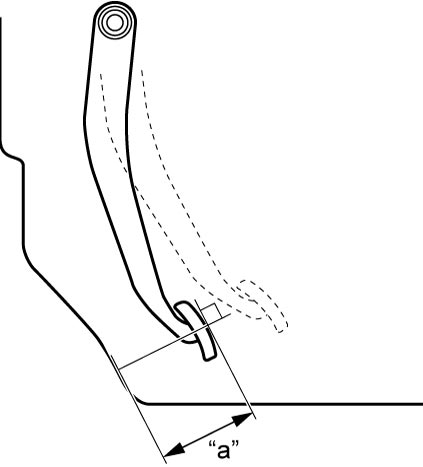

3)With brake pedal depressed with force of about 300 N (30.6 kgf, 67.4 lbf), measure clearance “a” between brake pedal and carpet. If clearance “a” is less than specification, check the following points.

•Air in brake system:

•Brake fluid leakage
•Length of brake booster push rod:

Brake pedal to carpet clearance “a”

When pedal is depressed at 300 N (30.6 kgf, 67.4 lbf):

LHD: Over 49 mm (1.93 in.)

RHD: Over 59 mm (2.32 in.)
