Brake Flexible Hose and Pipe Components
Precautions: Precautions for Brake Service · Precautions for Brakes · General safety (00)

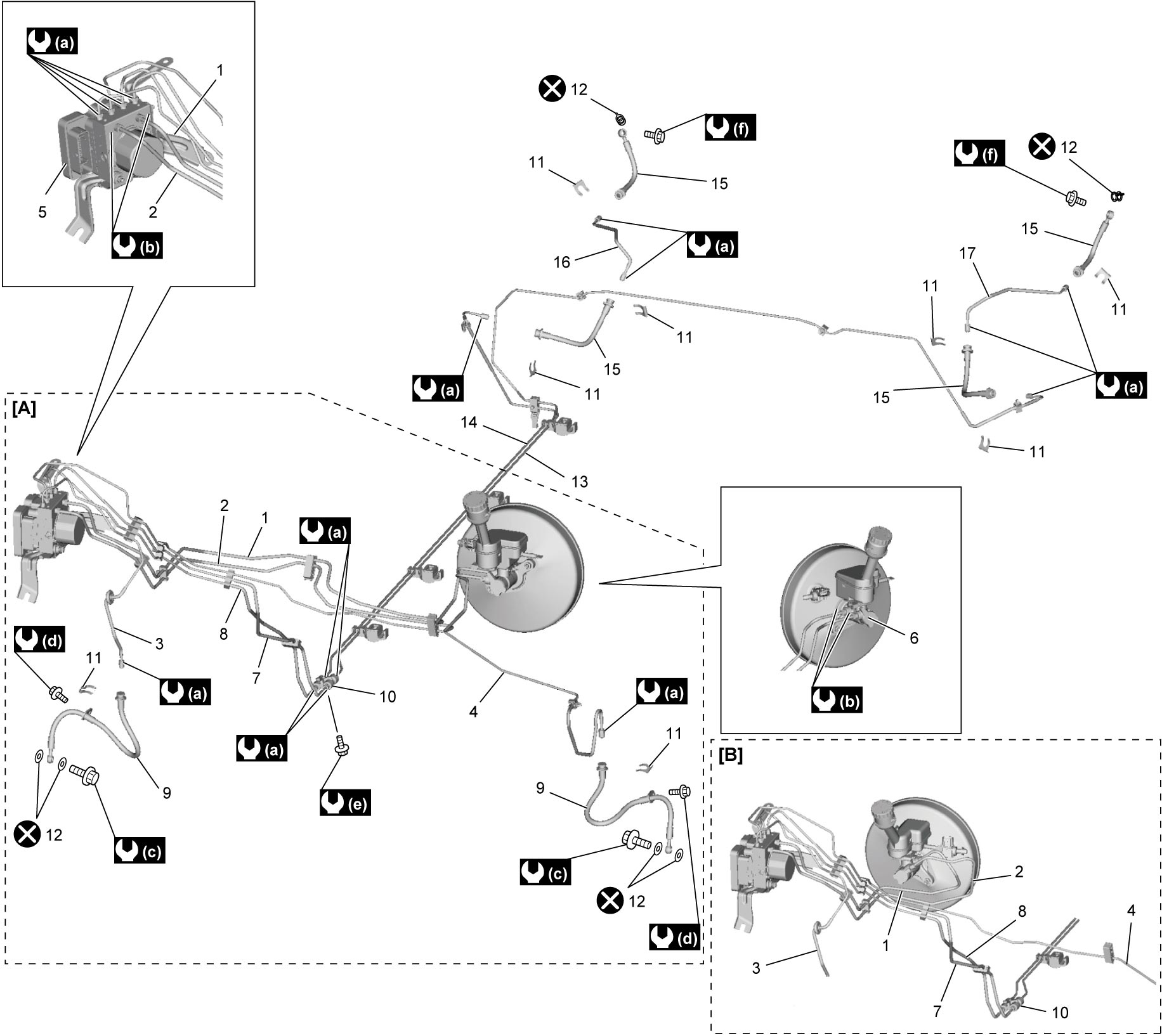

| [A]: | LHD | 12. | Flexible hose gasket |
| [B]: | RHD | 13. | Left pipe between joint and rear brake flexible hose |
| 1. | Pipe between master cylinder primary and ESP® hydraulic unit / control module assembly | 14. | Right pipe between joint and rear brake flexible hose |
| 2. | Pipe between master cylinder secondary and ESP® hydraulic unit / control module assembly | 15. | Rear brake flexible hose |
| 3. | Right pipe between ESP® hydraulic unit / control module assembly and front brake flexible hose | 16. | Right pipe between rear brake flexible hoses |
| 4. | Left pipe between ESP® hydraulic unit / control module assembly and front brake flexible hose | 17. | Left pipe between rear brake flexible hoses |
| 5. | ESP® hydraulic unit / control module assembly |
 : |
16 N·m (1.6 kgf-m, 12.0 lbf-ft) |
| 6. | Brake master cylinder |
 : |
19 N·m (1.9 kgf-m, 14.0 lbf-ft) |
| 7. | Left pipe between ESP® hydraulic unit / control module assembly and joint |
 : |
31 N·m (3.2 kgf-m, 23.0 lbf-ft) |
| 8. | Right pipe between ESP® hydraulic unit / control module assembly and joint |
 : |
26 N·m (2.7 kgf-m, 19.5 lbf-ft) |
| 9. | Front brake flexible hose |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 10. | Brake 4-way joint |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 11. | E-ring |
 : |
Do not reuse. |
