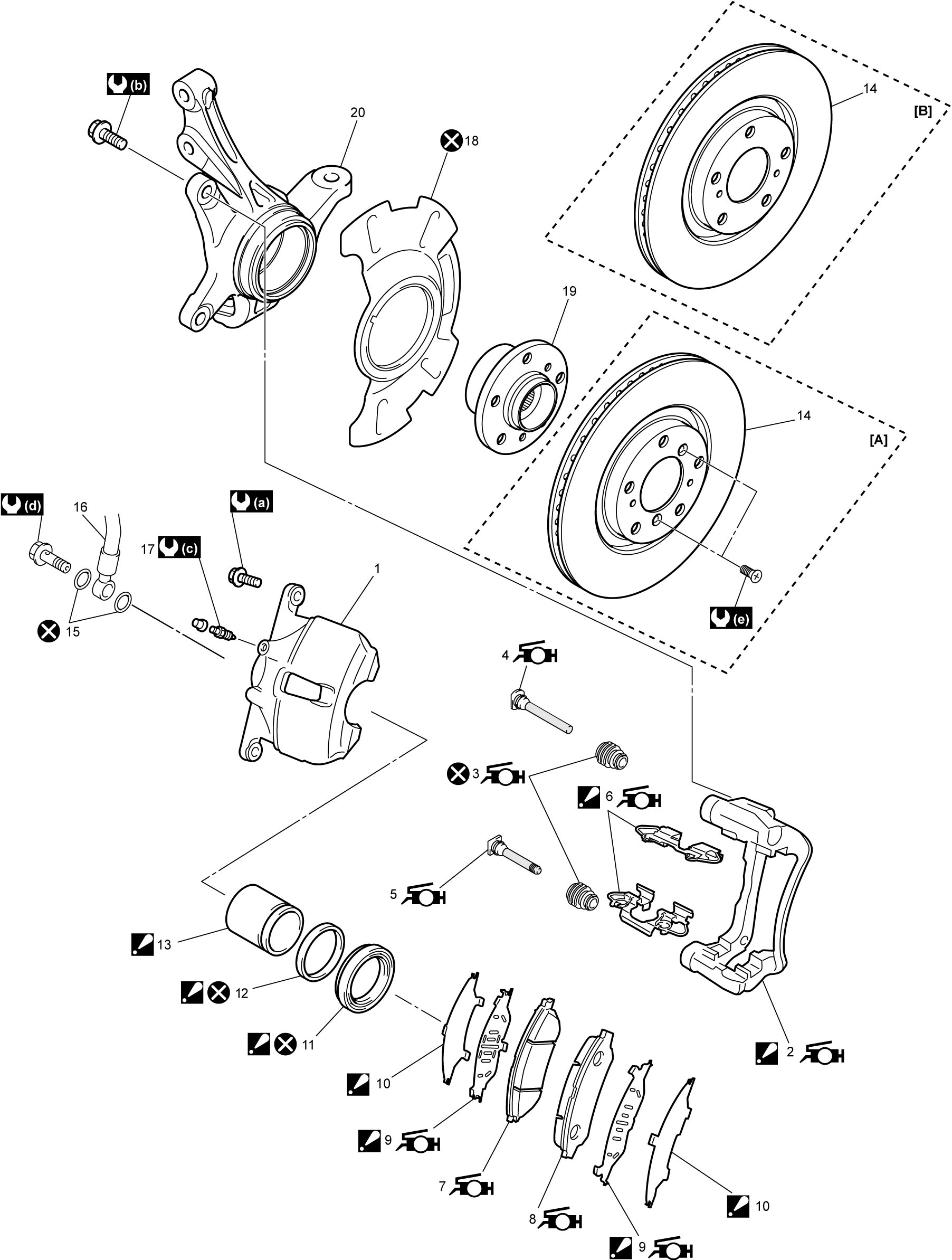

Front Brake Components
Precautions: Precautions for Brakes · General safety (00)
| [A]: | With front brake disc securing screw |
  9. |
Anti-noise shim : If brake pads are replaced, install new anti-noise shims included in supply parts and apply grease (black) between brake pad and anti-noise shim included in pad set of supply parts as well. |
19. | Front wheel hub |
| [B]: | Without front brake disc securing screw |
10. |
Brake pad shim : If brake pads are replaced, use new brake pad shim included in supply parts. |
20. | Steering knuckle |
| 1. | Front brake caliper |
11. |
Cylinder boot : Apply small amount of rubber grease included in piston seal set of supply parts or specified brake fluid. |
 : |
34 N·m (3.5 kgf-m, 25.0 lbf-ft) |
|
2. |
Front brake caliper carrier : For installation, refer to Front Brake Pad Removal and Installation. : Apply grease (gold) included in pad set of supply parts. |
12. |
Piston seal : Apply small amount of rubber grease included in piston seal set of supply parts or specified brake fluid. |
 : |
85 N·m (8.7 kgf-m, 63.0 lbf-ft) |
|
3. |
Pin boot : Apply rubber grease included in pin boot set of supply parts. |
13. |
Brake piston : Apply small amount of rubber grease included in piston seal set of supply parts or specified brake fluid. |
 : |
8.3 N·m (0.85 kgf-m, 6.5 lbf-ft) |
|
4. |
Slide pin without bushing : Apply rubber grease included in pin boot set of supply parts. |
14. | Front brake disc |
 : |
31 N·m (3.2 kgf-m, 23.0 lbf-ft) |
|
5. |
Slide pin with bushing : Apply rubber grease included in pin boot set of supply parts. |
15. | Flexible hose gasket |
 : |
9.0 N·m (0.92 kgf-m, 7.0 lbf-ft) |
|
6. |
Pad spring : For installation, refer to Front Brake Pad Removal and Installation. : Apply grease (gold) included in pad set of supply parts. |
16. | Front brake flexible hose |  : |
Do not reuse. |
|
7. |
Inner brake pad (with wear indicator) : Apply grease (black) included in pad set of supply parts between brake pad and anti-noise shim. |
17. | Bleeder plug | ||
|
8. |
Outer brake pad : Apply grease included in pad set of supply parts between brake pad and anti-noise shim. |
18. | Front brake disc dust cover |
