Rear Brake Disc Inspection
Precautions: Precautions for Brakes · General safety (00)

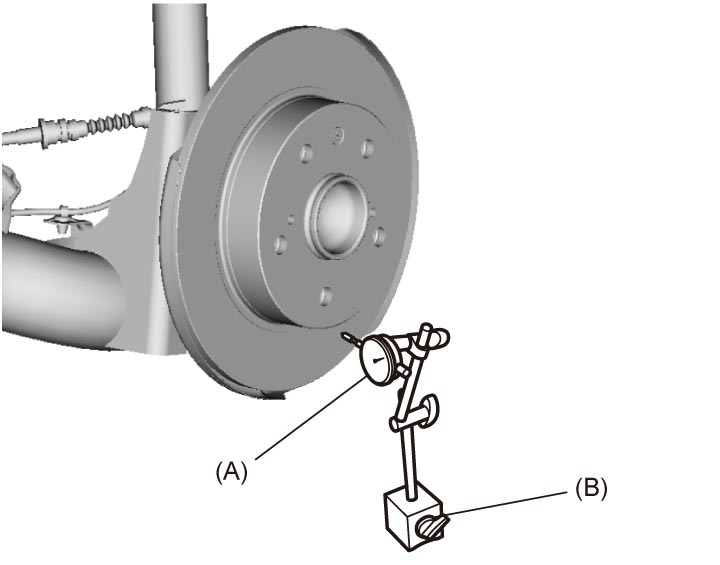

Measure deflection of rear brake disc at point 10 mm (0.39 in.) inside from its edge using special tools. Repair or replace rear brake disc if defective.
Rear brake disc deflection
Limit:
0.10 mm (0.004 in.)

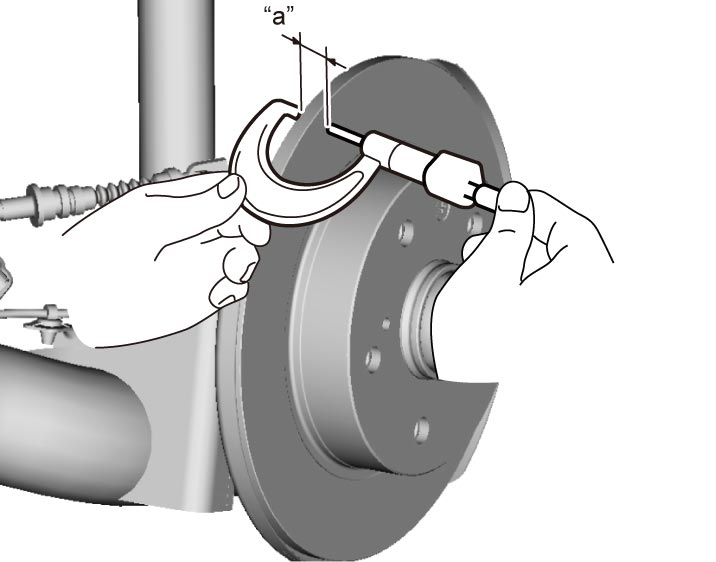

Measure thickness of rear brake disc with micrometer. If thickness is less than limit, replace rear brake disc.
Rear brake disc thickness
“a”
Standard:
9 mm (0.35 in.)
Limit:
8 mm (0.31 in.)
