Parking Brake Switch Inspection
Precautions: Precautions for Brakes · General safety (00)

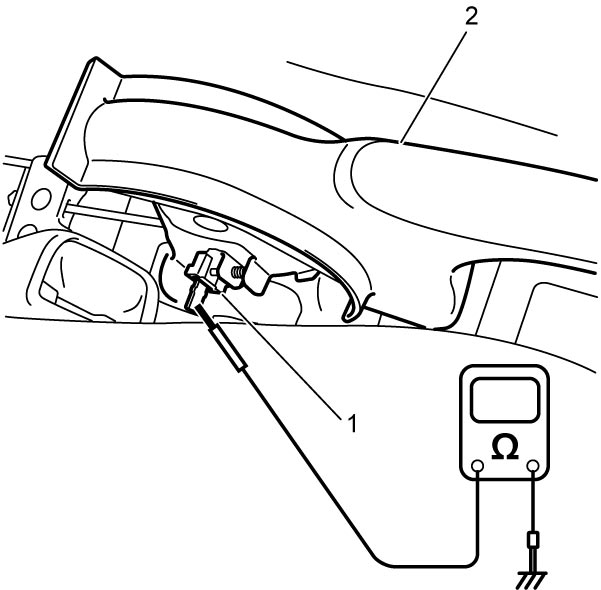

Check for continuity between parking brake switch terminal and ground as shown in figure. If check result is not as specified, replace parking brake switch (1).
Parking brake switch specification
Parking brake released: No continuity
Parking brake lever pulled up: Continuity exists
| 2. | Parking brake lever |
