Shift Paddle Switch Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

Removal
1)Remove steering wheel. icon

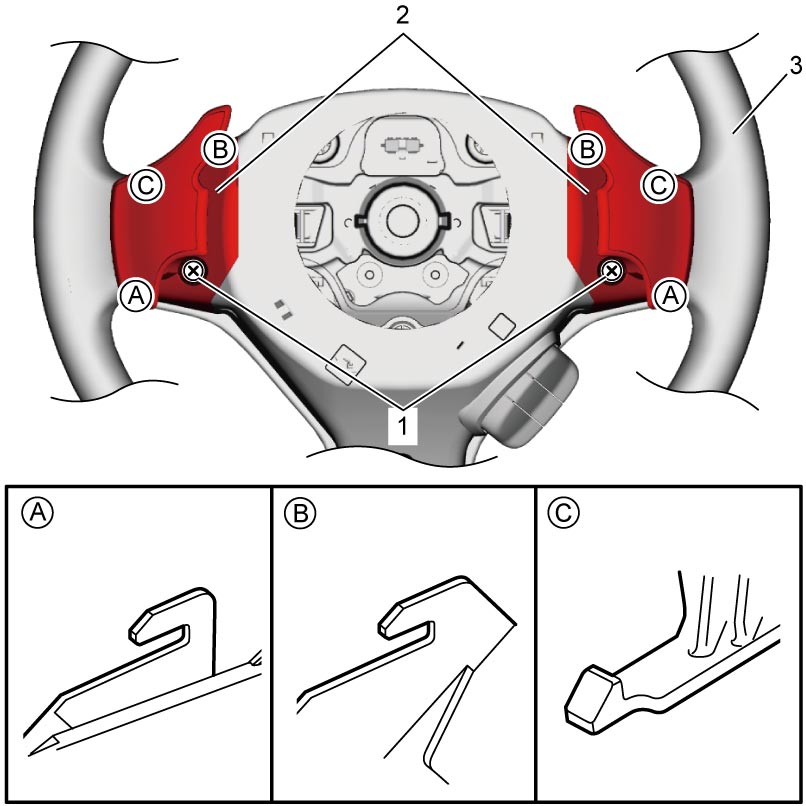

2)Remove screws (1), and then remove shift paddle switches (2) from steering wheel (3).

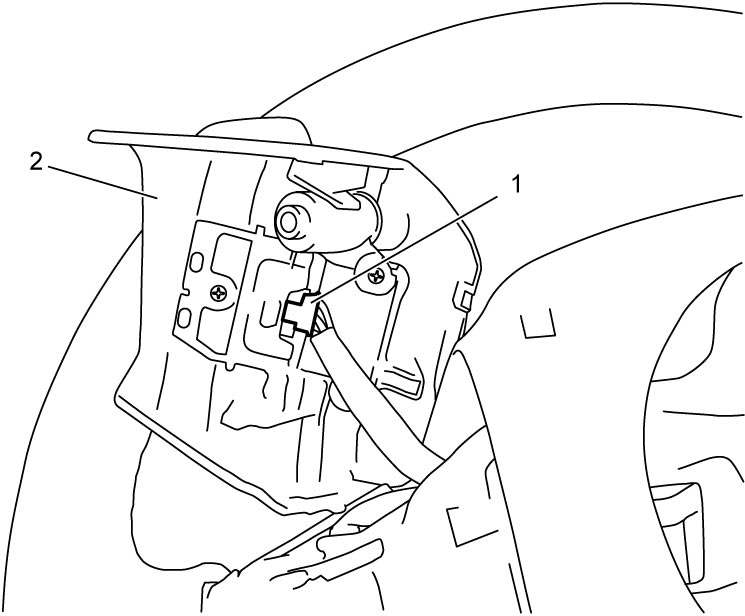

3)Disconnect connectors (1) from shift paddle switches (2).
Installation
Reverse removal procedure.
