Select Cable Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

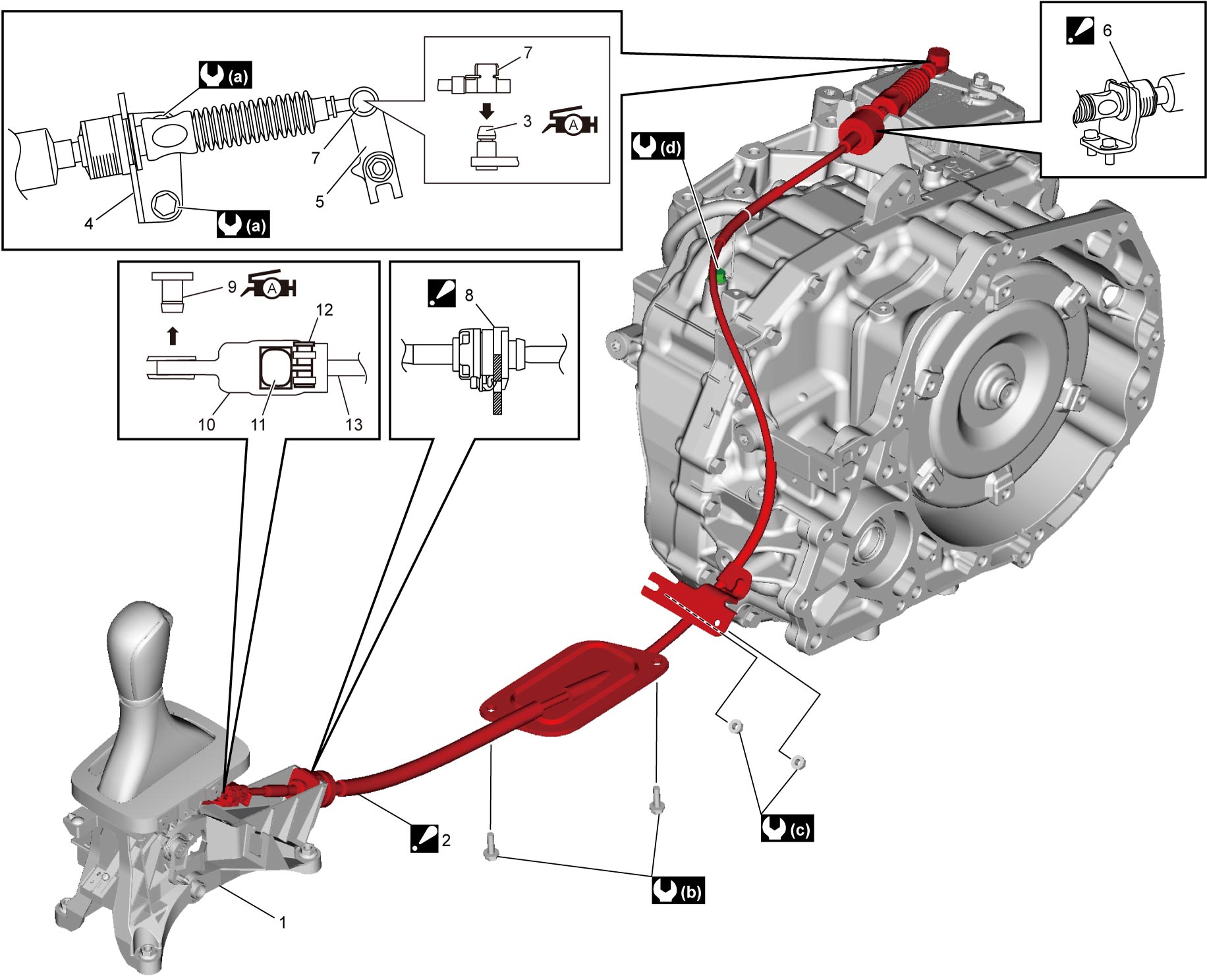

| 1. | Select lever assembly | 7. | Eye end | 13. | Adjuster end |
 2. |
Select cable : After completing installation, adjust select cable.
|
8. |
Casing cap : Check that claw of casing cap fits securely to select lever assembly. |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
 3. |
Manual select lever pin : Apply lithium grease 99000-25011 to sliding surface. |
9. |
Select lever pin : Apply lithium grease 99000-25011 to sliding surface. |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 4. | Select cable bracket | 10. | Adjuster case |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 5. | Manual select lever | 11. | Lock piece |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
|
6. |
Lock ring : There should be no gap between casing cap and lock ring. |
12. | Lock |
