Differential Side Oil Seal Replacement
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
1)Hoist vehicle and drain ATF.
2)Remove front drive shaft assembly.

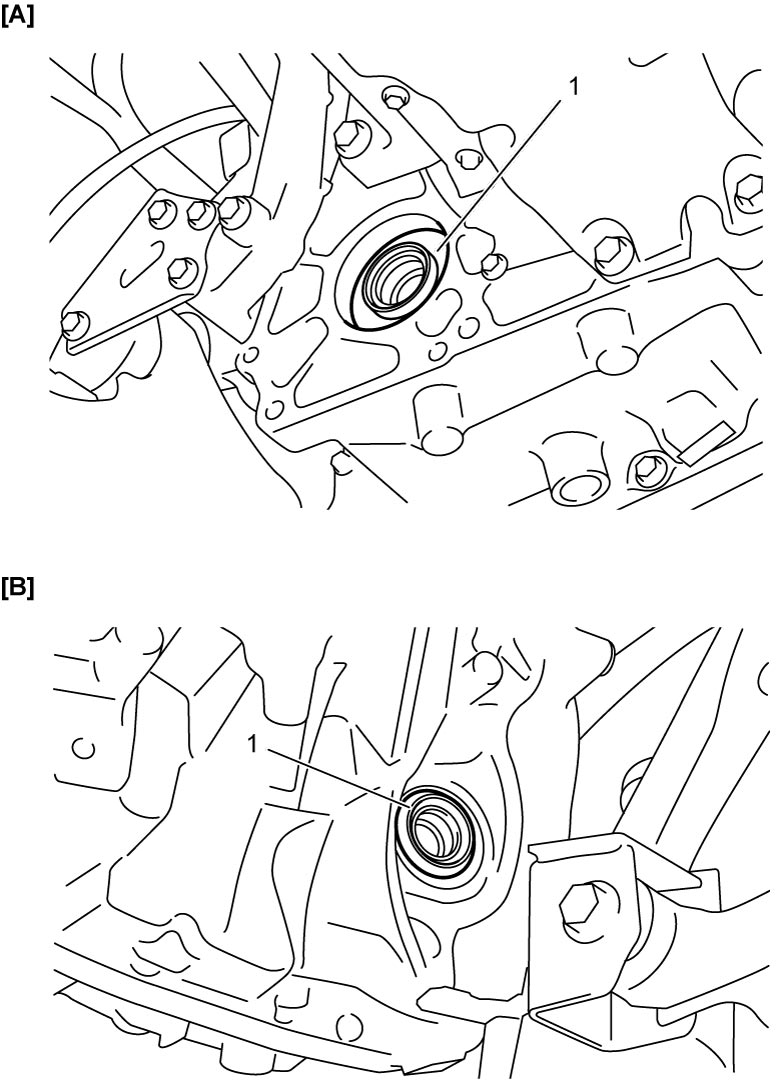

3)Remove differential side oil seals (1) using flat-bladed screwdriver or the like.
| [A]: | Right side | [B]: | Left side |

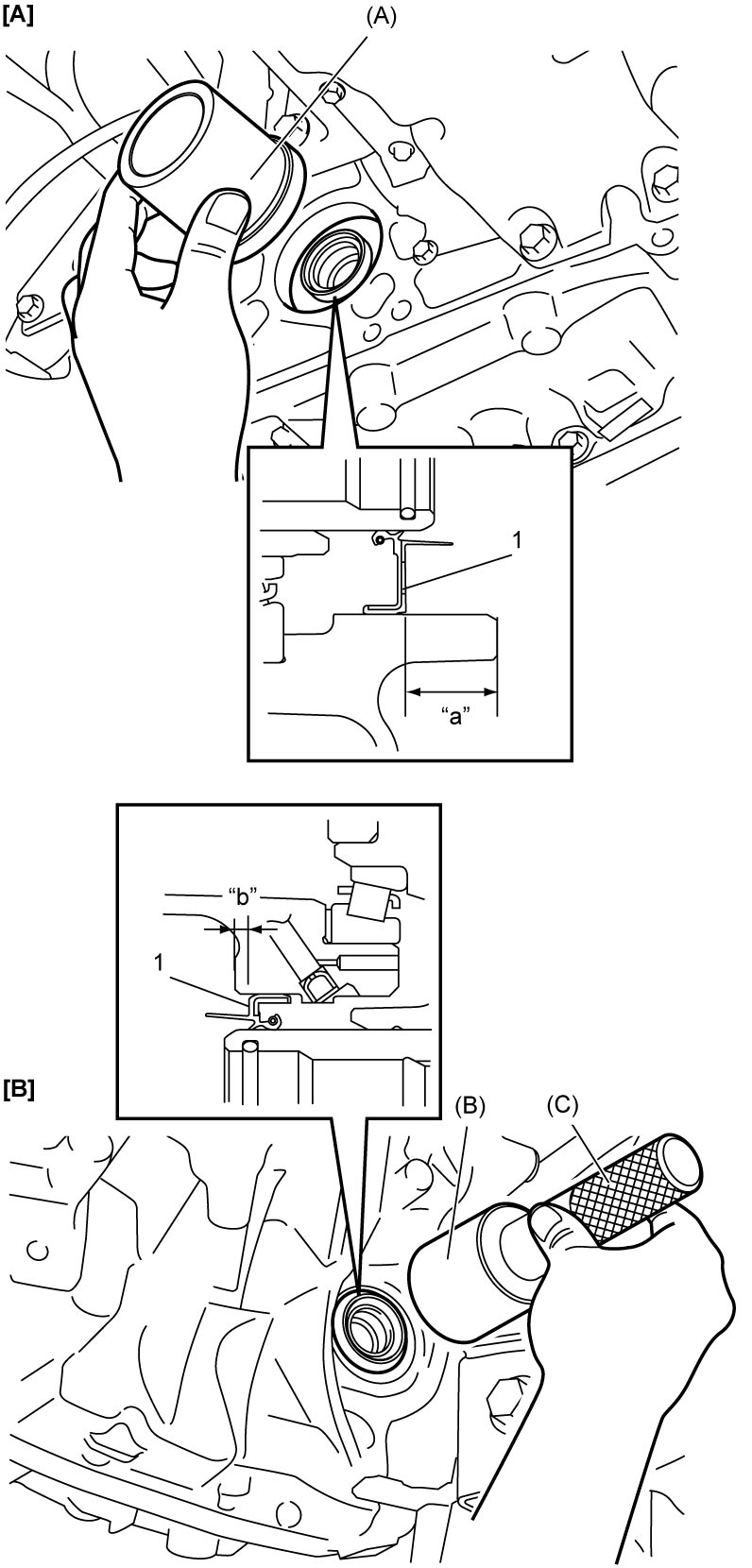

5)Using special tool, install new differential side oil seals (1) at specified position as shown in figure.
NOTE:
For 4WD model, right side differential side oil seal cannot be removed on the vehicle.
Differential side oil seal installing depth
Right side “a”: 18.6 – 19.6 mm (0.74 – 0.77 in.) (2WD model)
Left side “b”: 2.6 – 3.6 mm (0.11 – 0.14 in.)
| [A]: | Right side | [B]: | Left side |
6)Install front drive shaft assembly.
7)Replenish proper amount of ATF.
8)Check fluid level.
