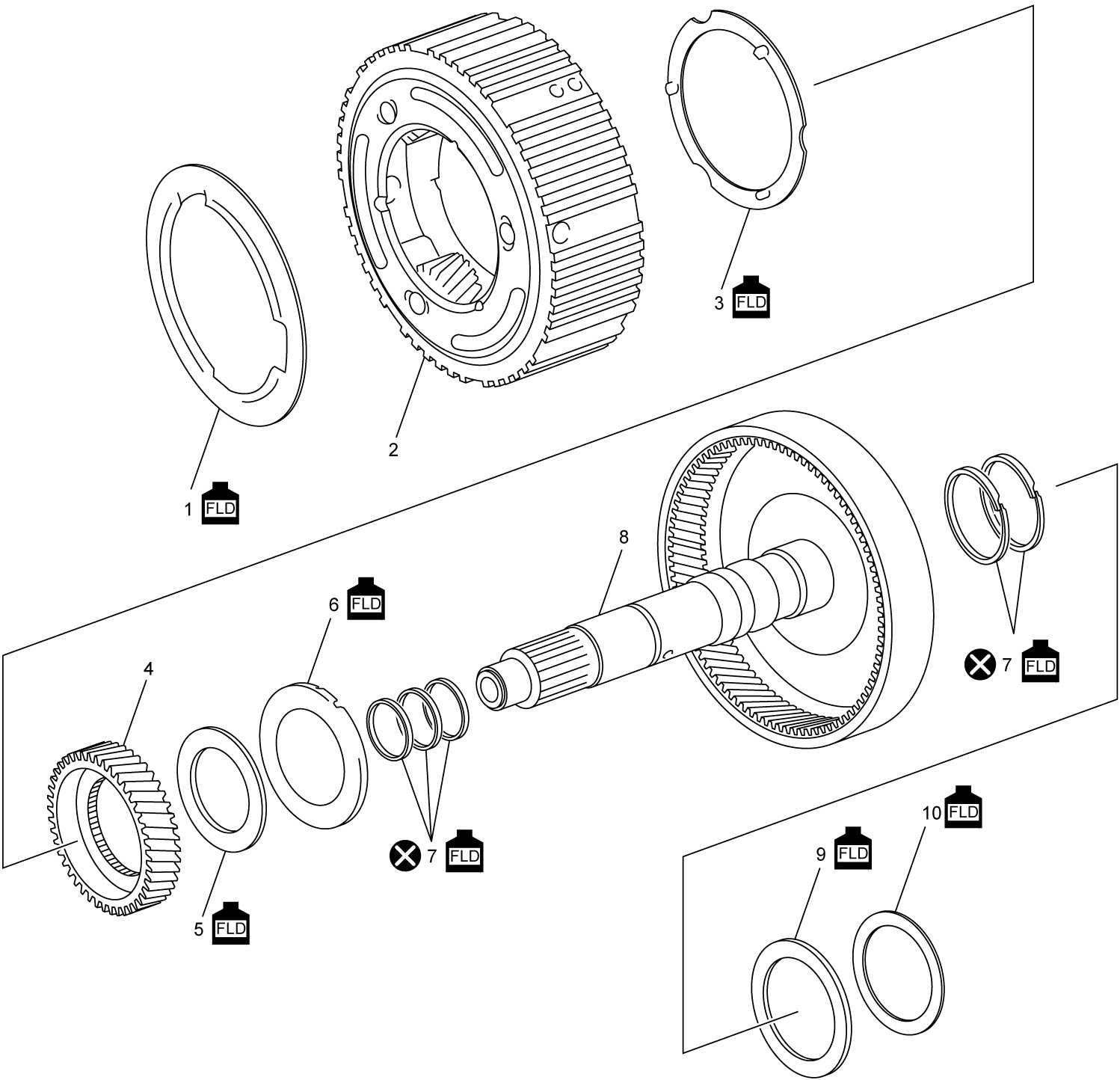

Front Planetary Gear Assembly and Input Shaft Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| 1. | Front planetary carrier washer No.1 | 5. | Front planetary carrier thrust bearing | 9. | Input shaft thrust bearing |
| 2. | Front planetary gear assembly | 6. | Front planetary carrier thrust washer | 10. | Input shaft thrust washer |
| 3. | Front planetary carrier washer No.2 | 7. | Input shaft seal ring |
 : |
Apply ATF. |
| 4. | Front planetary sun gear | 8. | Input shaft |
 : |
Do not reuse. |
