Manual Transaxle Oil Level Check

1)Hoist vehicle and check manual transaxle for oil leakage. Repair leaky point, if any.

2)Remove engine undercover.

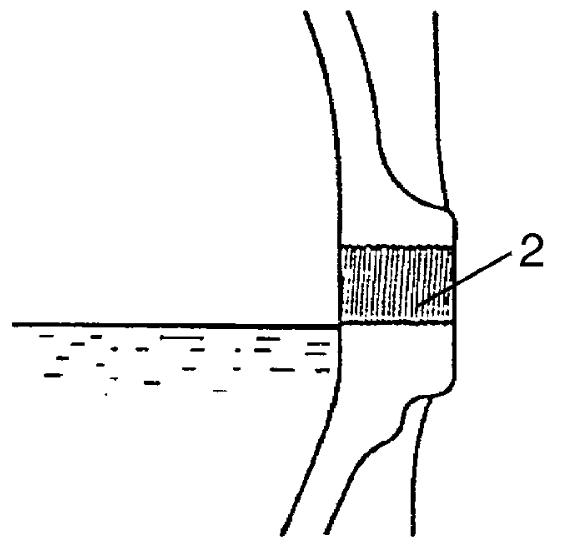

3)Remove oil level / filler plug (1). Check oil contamination and check that oil level reaches lower end of oil level / filler plug hole (2).
If oil is excessively dirty or insufficient, change oil or add specified oil up to plug hole.

4)Apply sealant to thread of level / filler plug, and then tighten it to specified torque.
