Manual Transaxle Oil Change

1)Before changing oil, stop engine and hoist vehicle horizontally.

2)With vehicle hoisted, check leakage.
If leakage exists, correct it.

3)Remove engine undercover.

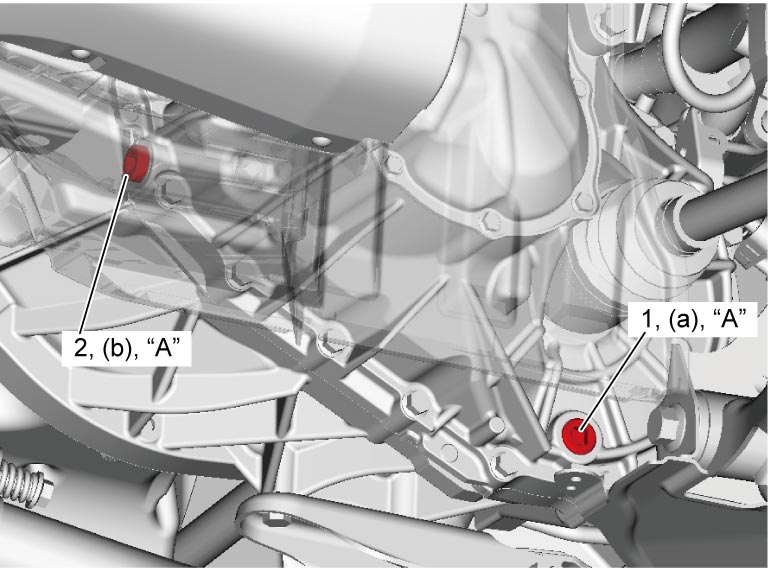

4)Remove oil level / filler plug (2).

5)Remove drain plug (1), and drain oil.

6)Apply sealant to thread of drain plug (1), and tighten it to specified torque.

“A”: Sealant 99000–31260 (SUZUKI Bond No.1217G)

Tightening torque

Transaxle oil drain plug (a): 21 N·m (2.1 kgf-m, 15.5 lbf-ft)

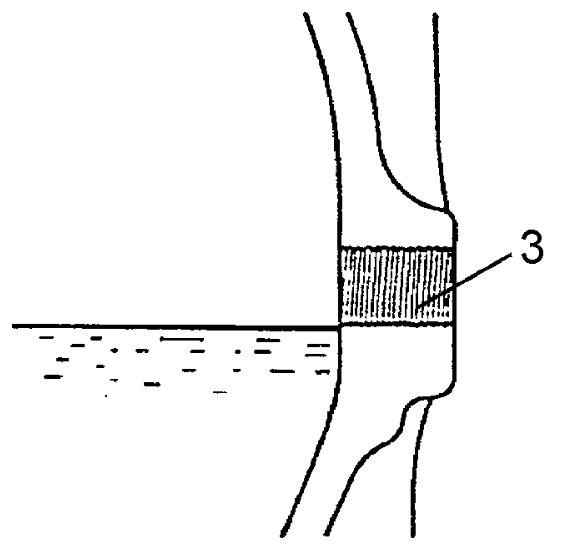

7)Add new specified oil until oil level reaches lower end of oil filler plug hole (3) as shown in figure.

NOTE:

It is highly recommended to use “SUZUKI GEAR OIL 75W”.

Manual transaxle oil specification

: SUZUKI GEAR OIL 99000–22B27–036

: API GL-4 (For SAE classification, refer to viscosity chart.)

Manual transaxle oil capacity

Reference: 2.5 liters (5.28/4.40 US/Imp. pt.)

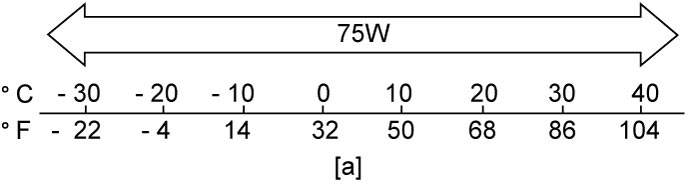

Viscosity chart

[a]:	Temperature

8)Apply sealant to thread of oil level / filler plug, and then tighten it to specified torque.

“A”: Sealant 99000–31260 (SUZUKI Bond No.1217G)

Tightening torque

Transaxle oil level / filler plug (b): 21 N·m (2.1 kgf-m, 15.5 lbf-ft)
