Neutral Position Switch Inspection (If Equipped)
Precautions:
General safety (00)

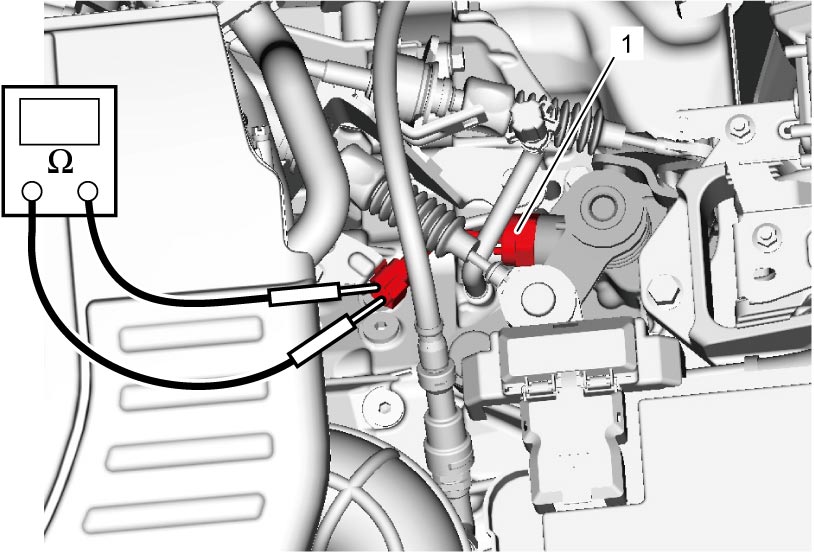

Check neutral position switch (1) function using ohmmeter.
Replace gear shift & select shaft assembly if switch does not operate as specified.
Neutral position switch specification
Neutral position: Continuity exists
1st gear position: No continuity
