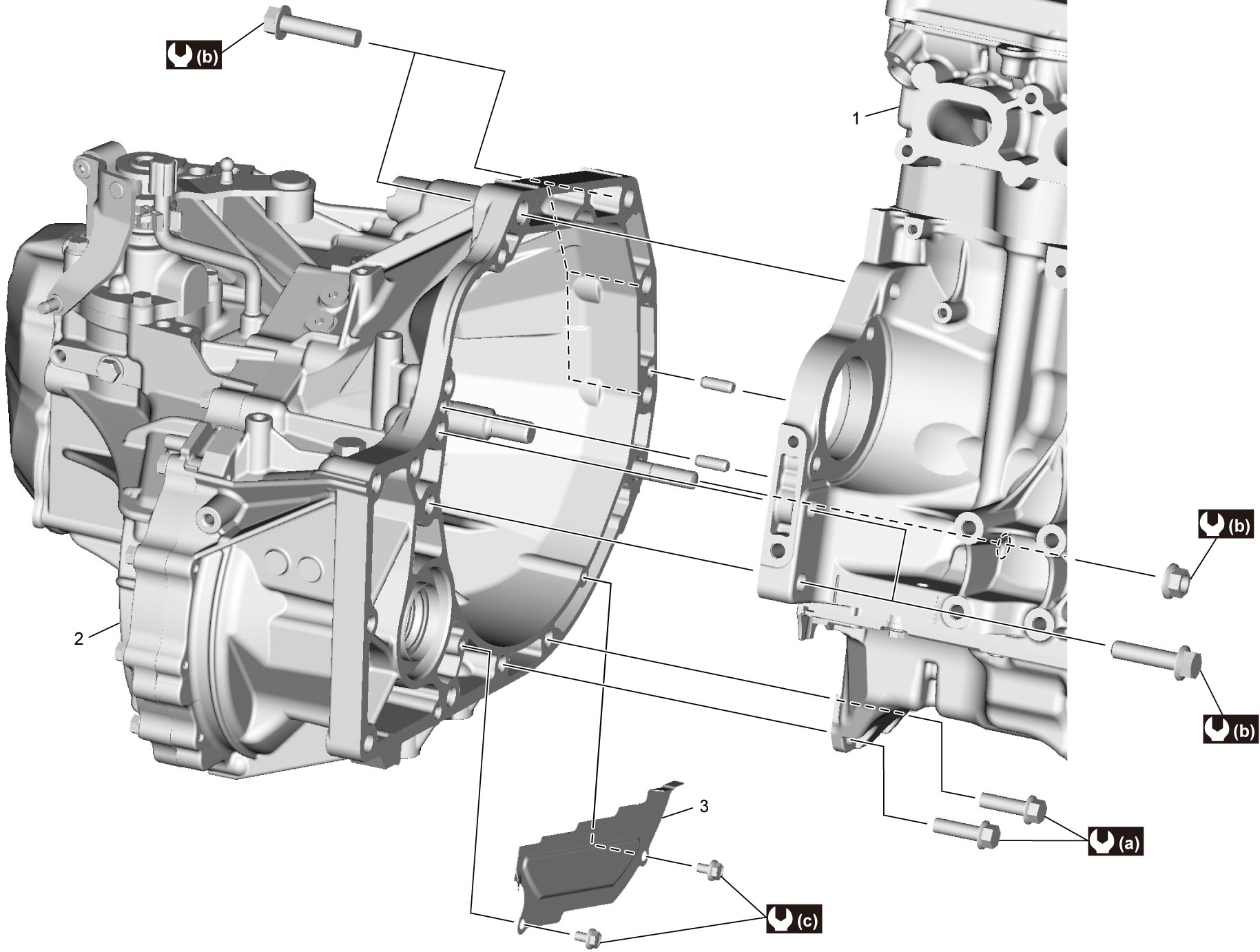

Manual Transaxle Unit Components
Precautions: General safety (00)
| 1. | Engine | 3. | Clutch housing lower plate |
 : |
85 N·m (8.7 kgf-m, 63.0 lbf-ft) |
| 2. | Transaxle |
 : |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
Precautions: General safety (00)
| 1. | Engine | 3. | Clutch housing lower plate |
: |
85 N·m (8.7 kgf-m, 63.0 lbf-ft) |
| 2. | Transaxle |
: |
55 N·m (5.6 kgf-m, 40.5 lbf-ft) |
: |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
