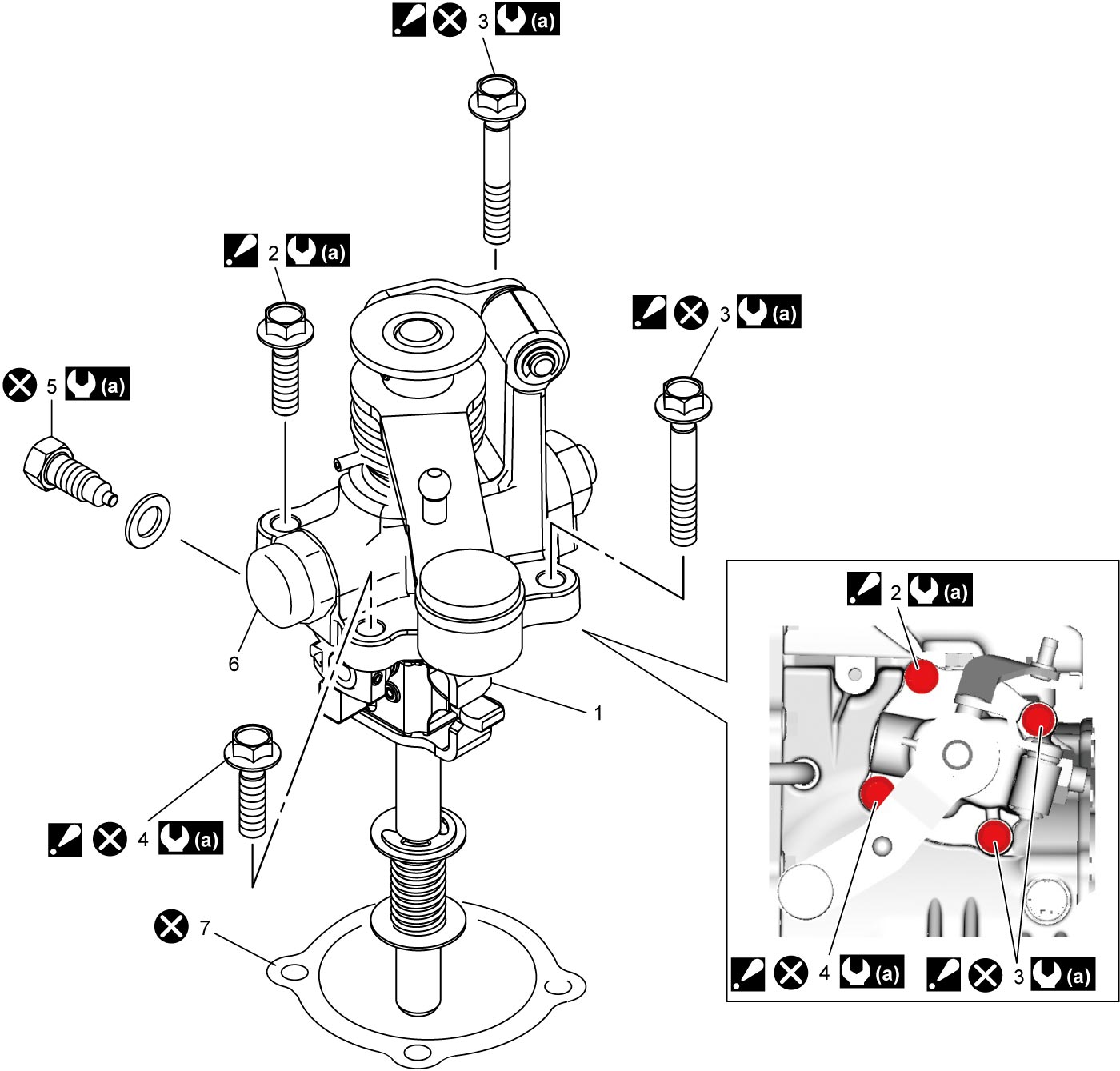

Gear Shift and Select Shaft Assembly Components
Precautions: General safety (00)
| 1. | Gear shift & select shaft assembly | 6. | Neutral position switch (if equipped) |
 2. |
Gear shift guide case No.1 bolt : For tightening order, refer to Gear Shift and Select Shaft Assembly Removal and Installation:5 M/T. |
7. | Gasket |
|
3. |
Gear shift guide case No.2 bolt : For tightening order, refer to Gear Shift and Select Shaft Assembly Removal and Installation:5 M/T. |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
|
4. |
Gear shift guide case No.3 bolt : For tightening order, refer to Gear Shift and Select Shaft Assembly Removal and Installation:5 M/T. |
 : |
Do not reuse. |
| 5. | Gear shift interlock bolt |
