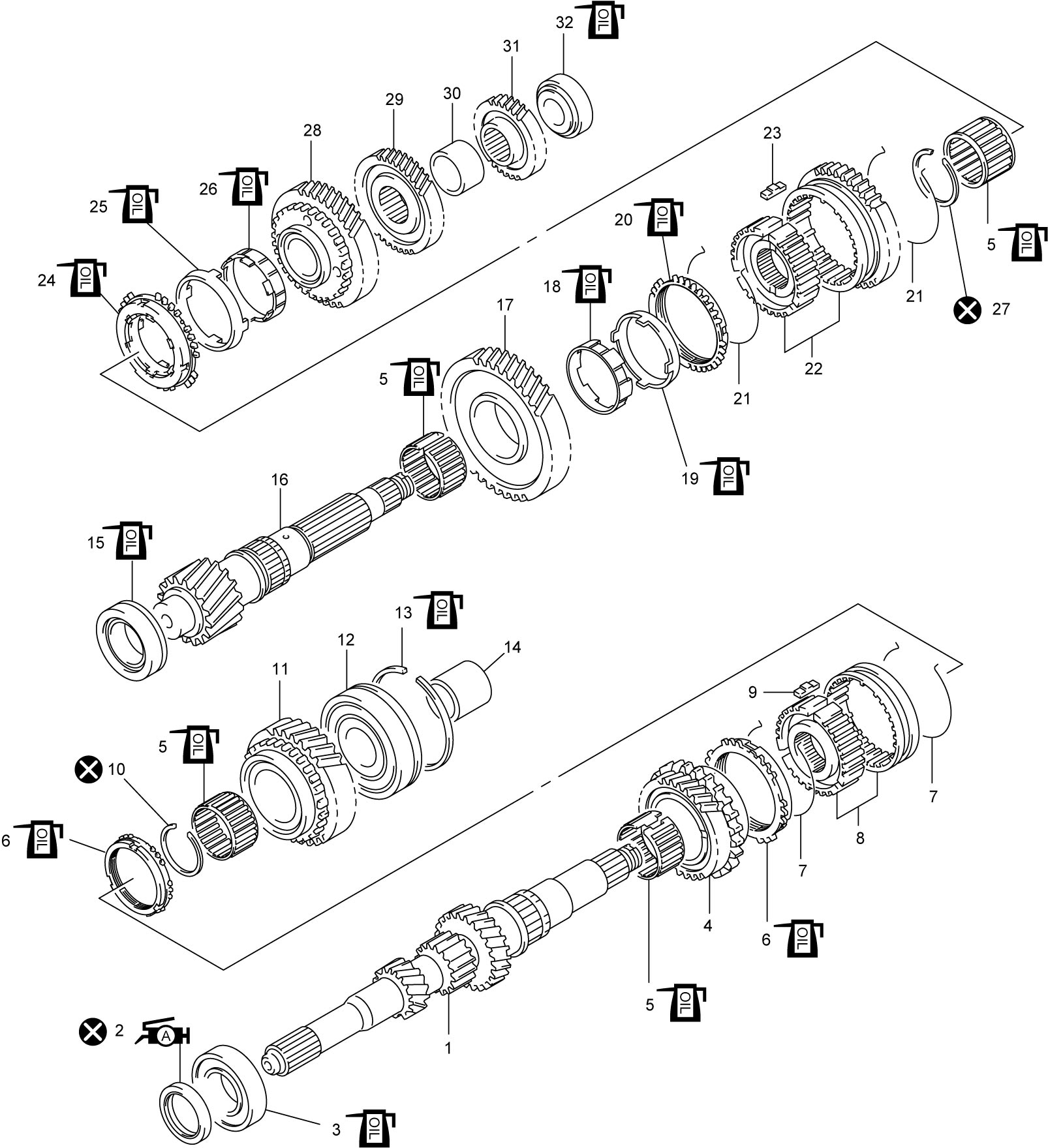

Input Shaft and Countershaft Components
Precautions: General safety (00)
| 1. | Input shaft | 13. | Circlip | 25. | 2nd gear synchronizer center cone |
 2. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
14. | 5th gear spacer | 26. | 2nd gear synchronizer inner ring |
| 3. | Input shaft right bearing | 15. | Countershaft right bearing | 27. | Circlip |
| 4. | Input shaft 3rd gear | 16. | Countershaft | 28. | Countershaft 2nd gear |
| 5. | Needle bearing | 17. | Countershaft 1st gear | 29. | Countershaft 3rd gear |
| 6. | High speed synchronizer ring | 18. | Low speed synchronizer inner ring | 30. | 3rd & 4th gear spacer |
| 7. | High speed synchronizer spring | 19. | Low speed synchronizer center cone | 31. | Countershaft 4th gear |
| 8. | High speed synchronizer sleeve & hub | 20. | Low speed synchronizer outer ring | 32. | Countershaft left bearing |
| 9. | High speed synchronizer key | 21. | Low speed synchronizer spring |
 : |
Do not reuse. |
| 10. | Circlip | 22. | Low speed synchronizer sleeve & hub |
 : |
Apply transaxle oil. |
| 11. | Input shaft 4th gear | 23. | Low speed synchronizer key | ||
| 12. | Input shaft left bearing | 24. | 2nd gear synchronizer outer ring |
