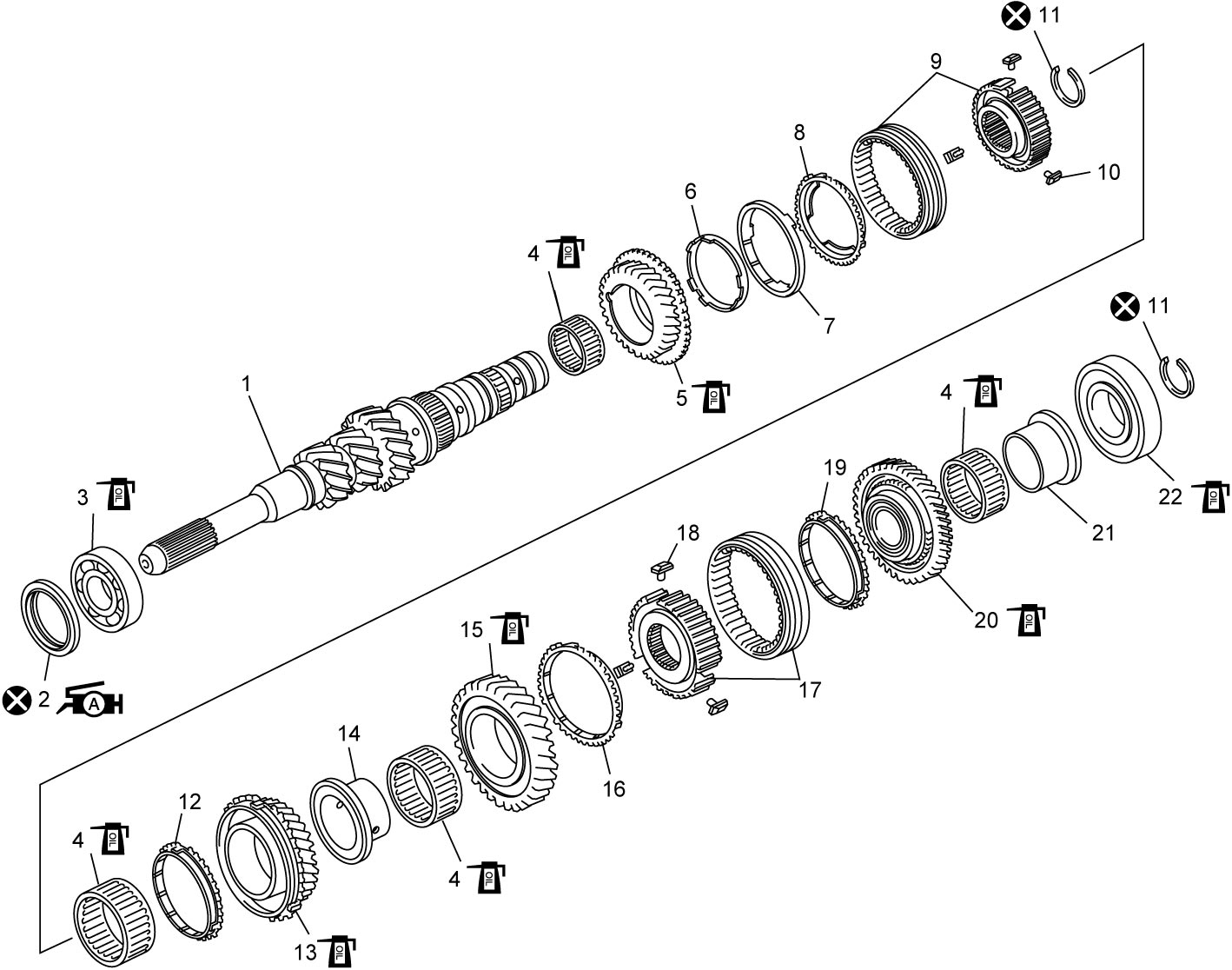

Input Shaft Components
Precautions: General safety (00)
| 1. | Input shaft | 9. | High speed synchronizer sleeve & hub | 17. | 5th & 6th gear synchronizer sleeve & hub |
 2. |
Oil seal : Apply grease 99000-25011 to oil seal lip. |
10. | High speed synchronizer key | 18. | 5th & 6th gear synchronizer key |
| 3. | Input shaft right bearing | 11. | Circlip | 19. | 6th gear synchronizer ring |
| 4. | Needle bearing | 12. | 4th gear synchronizer ring | 20. | Input shaft 6th gear |
| 5. | Input shaft 3rd gear | 13. | Input shaft 4th gear | 21. | Input shaft 6th gear spacer |
| 6. | 3rd gear synchronizer inner ring | 14. | Input shaft 5th gear spacer | 22. | Input shaft left bearing |
| 7. | 3rd gear synchronizer center cone | 15. | Input shaft 5th gear |
 : |
Do not reuse. |
| 8. | 3rd gear synchronizer outer ring | 16. | 5th gear synchronizer ring |
 : |
Apply transaxle oil. |
