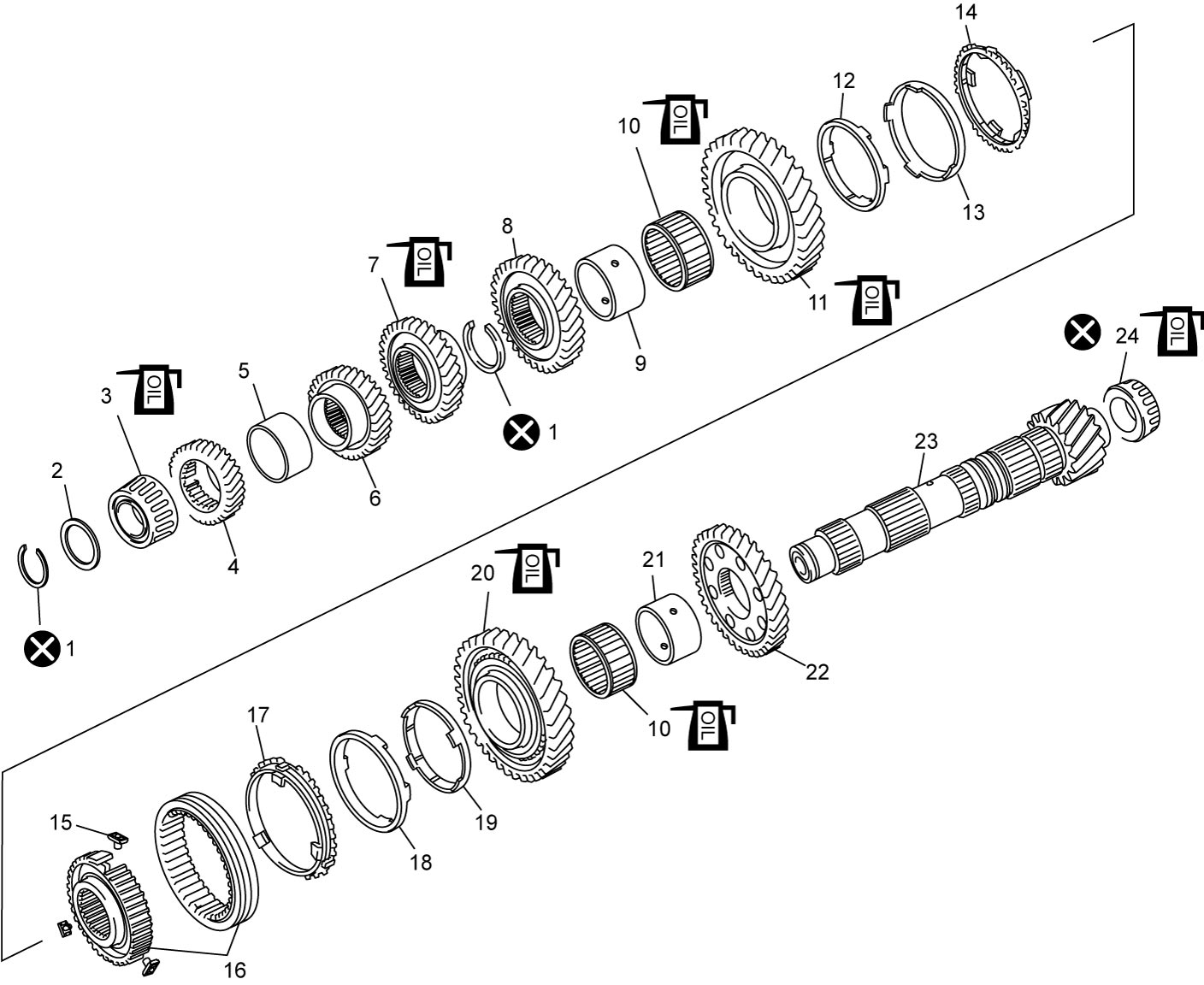

Countershaft Components
Precautions: General safety (00)
| 1. | Circlip | 10. | Needle bearing | 19. | 1st gear synchronizer inner ring |
| 2. | Washer | 11. | Countershaft 2nd gear | 20. | Countershaft 1st gear |
| 3. | Countershaft left bearing | 12. | 2nd gear synchronizer inner ring | 21. | Countershaft 1st gear spacer |
| 4. | Countershaft 6th gear | 13. | 2nd gear synchronizer center cone | 22. | Countershaft reverse gear |
| 5. | Countershaft 5th gear spacer | 14. | 2nd gear synchronizer outer ring | 23. | Countershaft |
| 6. | Countershaft 5th gear | 15. | Low speed synchronizer key | 24. | Countershaft right bearing |
| 7. | Countershaft 4th gear | 16. | Low speed synchronizer sleeve & hub |
 : |
Apply transaxle oil. |
| 8. | Countershaft 3rd gear | 17. | 1st gear synchronizer outer ring |
 : |
Do not reuse. |
| 9. | Countershaft 2nd gear spacer | 18. | 1st gear synchronizer center cone |
