Suzuki Vitara (LY) 2016-2017 · Service Manual
K14C-6M/T Model · Repair Instructions
Contents
›
5B Manual Transmission/Transaxle
› K14C-6M/T Model › Repair Instructions
Input Shaft Inspection
Precautions:
General safety (00)
Reference: Input Shaft Disassembly and Reassembly:K14C-6M/T Model
•
Check input shaft for damage and excessive wear, and replace if necessary.
•

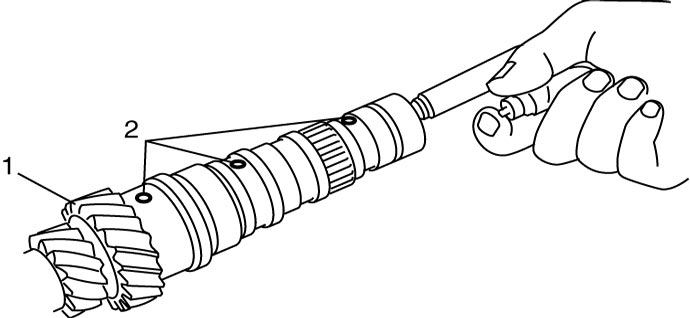

To ensure lubrication of input shaft (1), blow air into oil holes (2) and check that they are free from any obstruction.
