Countershaft Inspection
Precautions:
General safety (00)
Reference: Countershaft Disassembly and Reassembly:K14C-6M/T Model
•
Check countershaft for damage and excessive wear, and replace it if necessary.
•

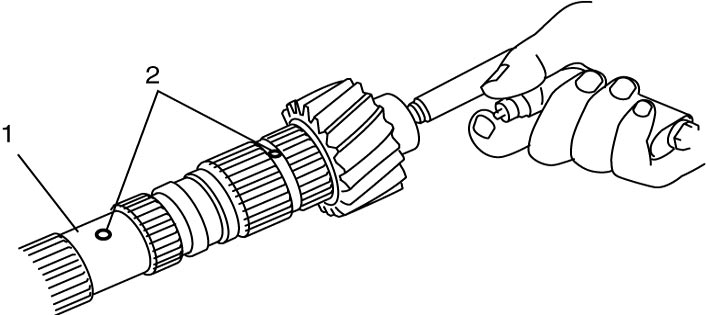

To ensure lubrication of countershaft (1), blow air into oil holes (2) and check that they are free from any obstruction.
