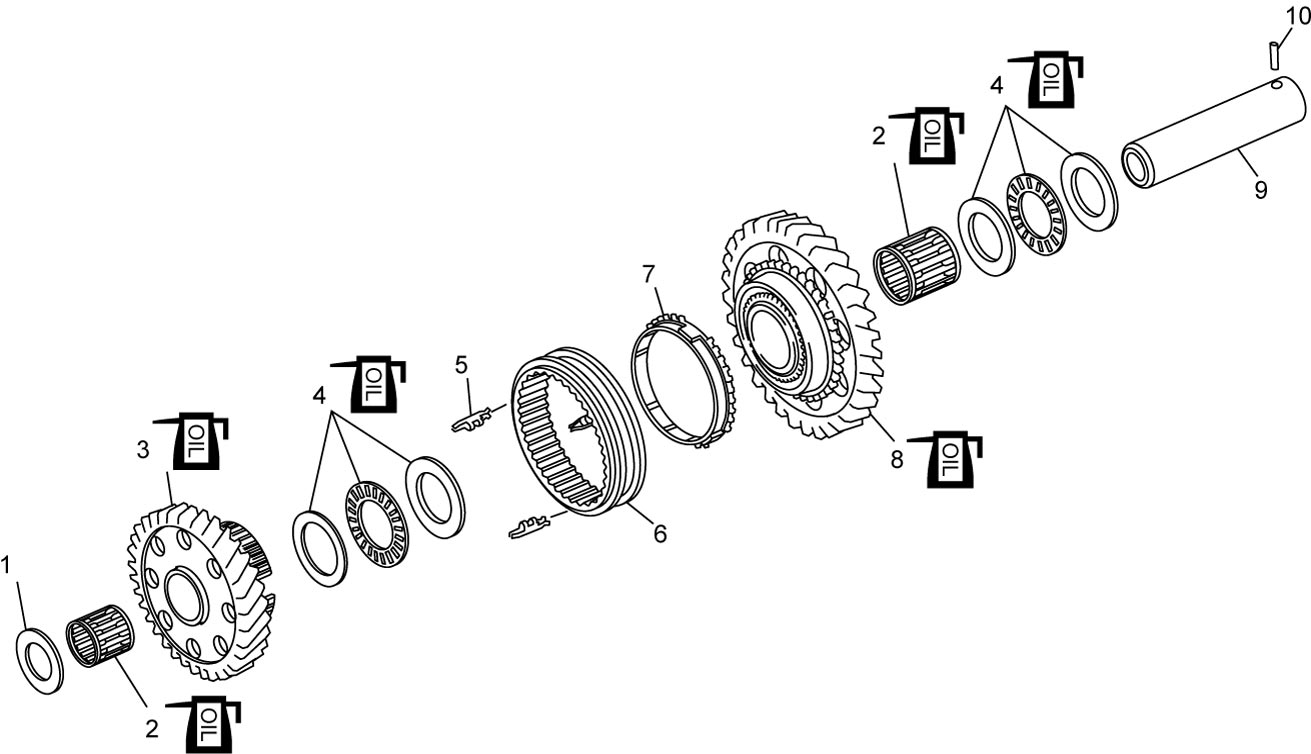

Reverse Idler Gear Assembly Components
Precautions: General safety (00)
| 1. | Shim | 5. | Reverse gear synchronizer key | 9. | Reverse gear shaft |
| 2. | Needle bearing | 6. | Reverse gear synchronizer sleeve | 10. | Reverse gear shaft pin |
| 3. | Reverse idler left gear | 7. | Reverse gear synchronizer ring |
 : |
Apply transaxle oil. |
| 4. | Reverse gear thrust bearing set | 8. | Reverse idler right gear |
