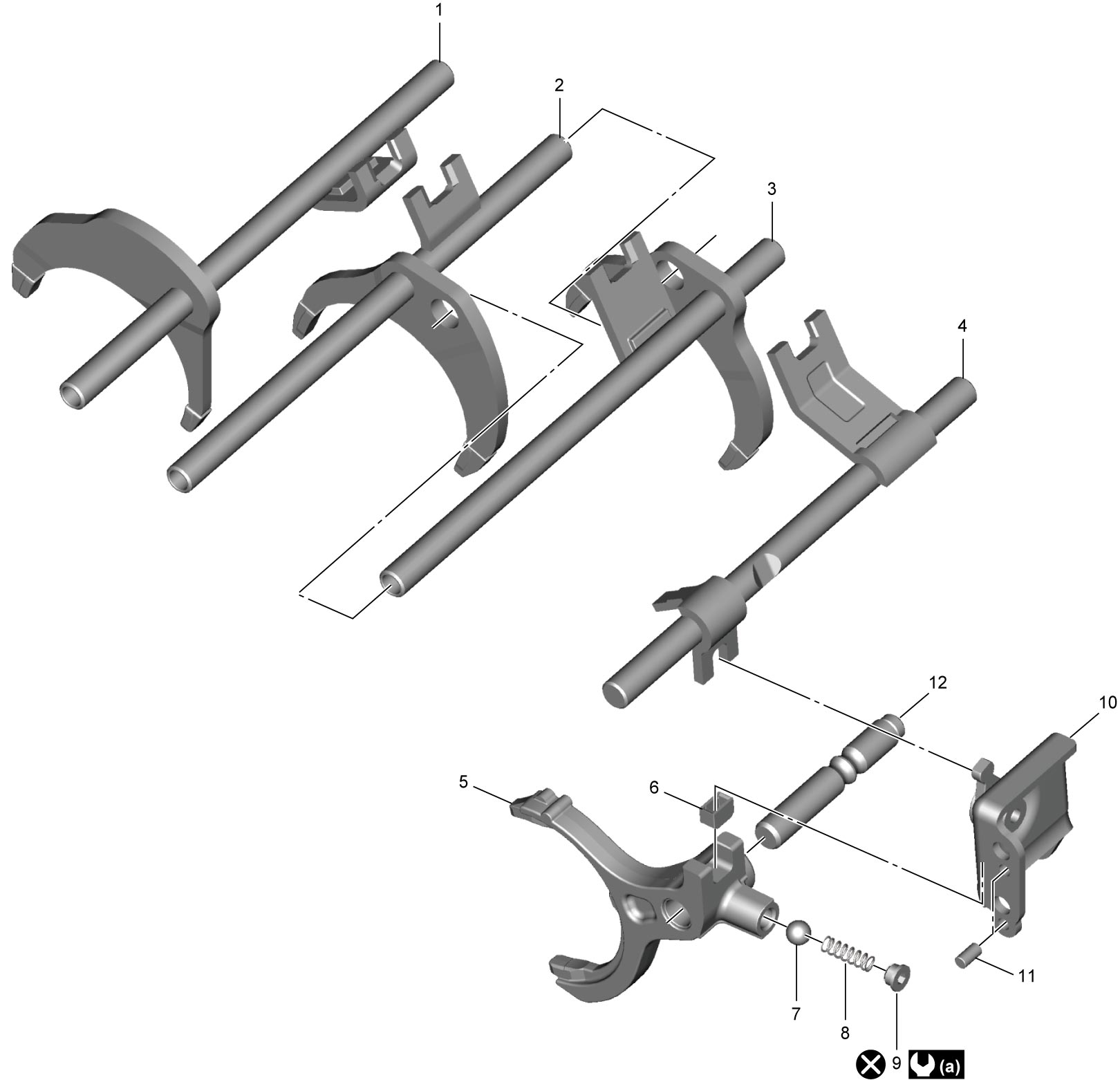

Gear Shift Shaft and Fork Components
Precautions: General safety (00)
| 1. | Low speed gear shift shaft | 6. | Shift lever cap | 11. | Dowel pin |
| 2. | High speed gear shift shaft | 7. | Steel ball | 12. | Reverse gear shaft |
| 3. | 5th & 6th gear shift shaft | 8. | Reverse gear shift arm spring |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 4. | Reverse gear shift shaft | 9. | Plug |
 : |
Do not reuse. |
| 5. | Reverse gear shift fork | 10. | Reverse gear shift lever |
