Gear Shift and Select Shaft Assembly Disassembly and Reassembly
Precautions: General safety (00)

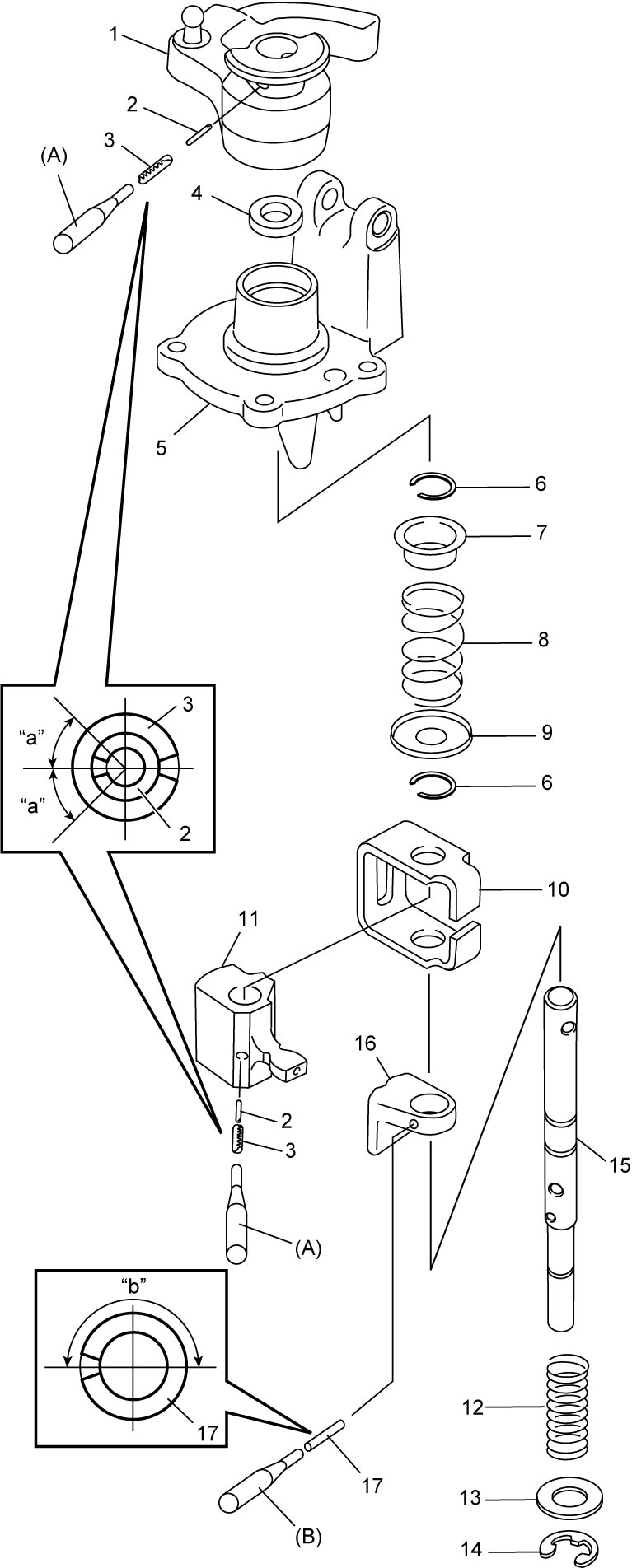

Disassemble and reassemble gear shift and select shaft assembly referring to the following points and figure.

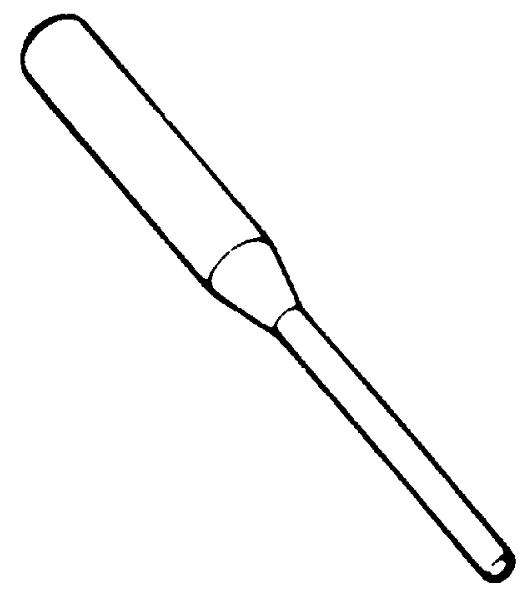

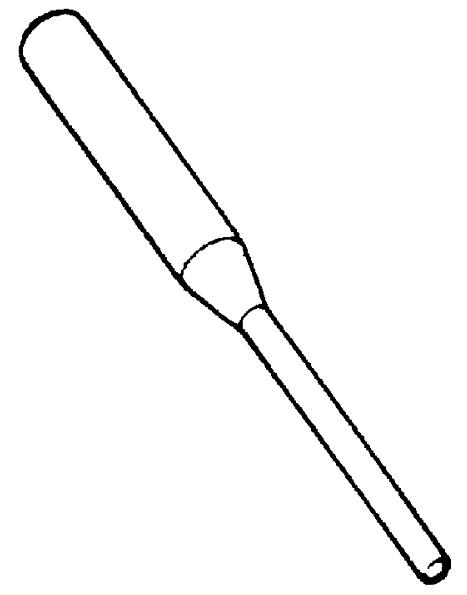

•Push spring pins out using special tools as shown below.
•Check component parts for wear, distortion or damage. If any defect is found, replace defective part with new one.
•Check component parts for wear, distortion or damage. If any defect is found, replace defective part with new one.
NOTICE:
The gear shift and select shaft may be bent if the spring pins are driven without using any support on the back of the spring pin fitting location.
Support the spring pin fitting location from behind with a wooden block when installing the spring pins.
| “a”: | 45° | 9. | 5th & 6th select spring lower holder |
| “b”: | 180° | 10. | Gear shift interlock plate |
| 1. | Shift cable lever | 11. | Gear shift & select lever |
| 2. | Spring pin inner | 12. | 1st & 2nd select spring |
| 3. | Spring pin outer | 13. | Shift & select washer |
| 4. | Oil seal | 14. | E-ring |
| 5. | Guide case | 15. | Gear shift & select shaft |
| 6. | Snap ring | 16. | Gear shift cam |
| 7. | 5th & 6th select spring upper holder | 17. | Spring pin |
| 8. | 5th & 6th select spring |
