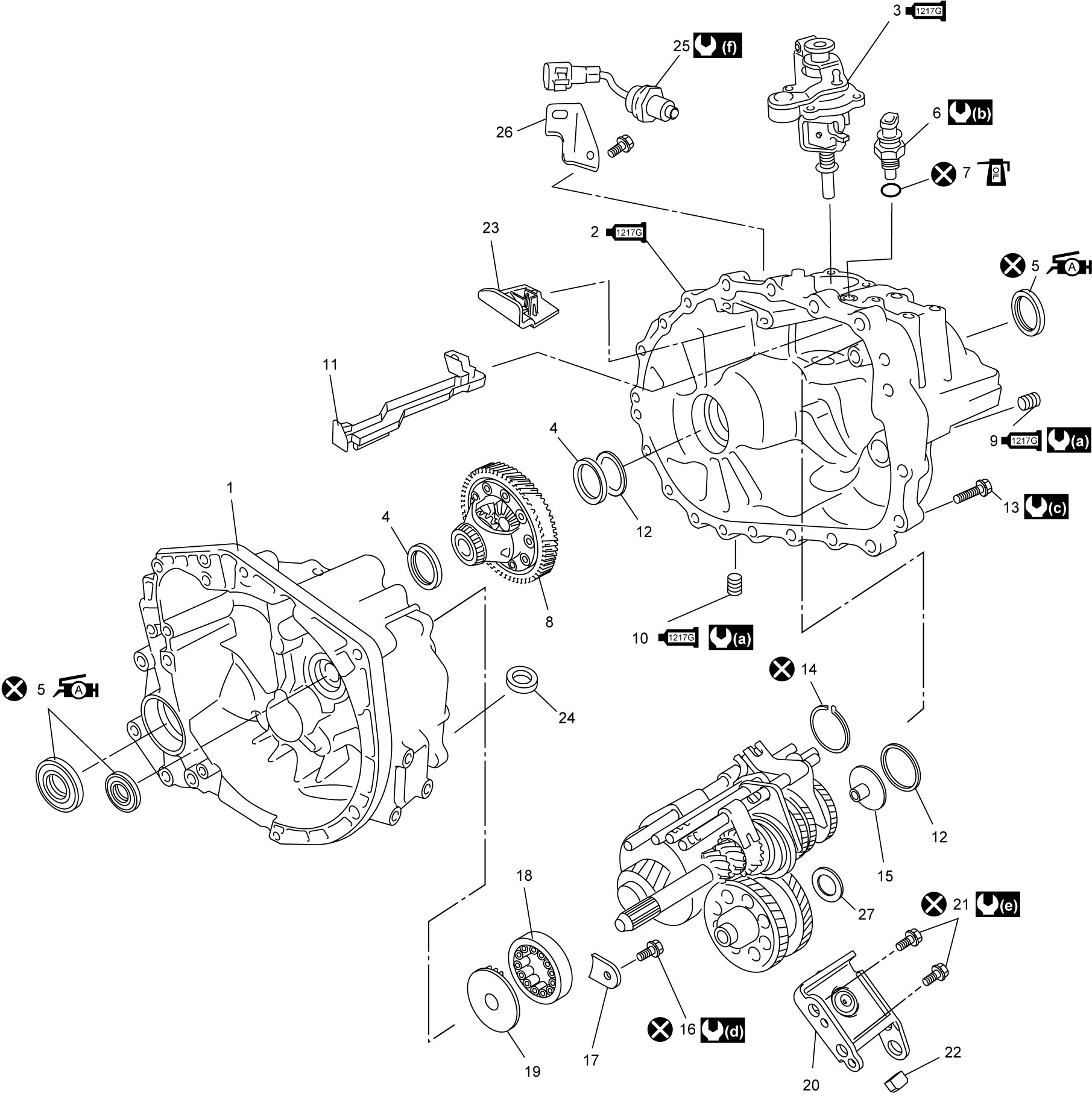

Manual Transaxle Assembly Components

1.	Transaxle right case	13.	Transaxle case bolts	25.	Neutral position switch (if equipped)
2.	Transaxle left case : Apply sealant 99000-31260 to mating surface of left case and right case.	14.	Circlip	26.	Neutral position switch bracket (if equipped)
3.	Gear shift & select shaft assembly : Apply sealant 99000-31260 to mating surface of guide case and left case.	15.	Input shaft oil channel	27.	Reverse gear washer
4.	Outer race	16.	Bearing stopper bolt	:	21 N·m (2.1 kgf-m, 15.5 lbf-ft)
5.	Oil seal : Apply grease 99000-25011 to oil seal lip.	17.	Bearing stopper plate	:	19 N·m (1.9 kgf-m, 14.0 lbf-ft)
6.	Back up light switch	18.	Countershaft right side bearing	:	55 N·m (5.5 kgf-m, 40.0 lbf-ft)
7.	O-ring	19.	Countershaft oil channel	:	11 N·m (1.1 kgf-m, 8.0 lbf-ft)
8.	Differential assembly	20.	Reverse gear shift lever	:	25 N·m (2.5 kgf-m, 18.0 lbf-ft)
9.	Oil level / filler plug : Apply sealant 99000-31260 to all around thread part of plug.	21.	Reverse gear shift lever bolt	:	23 N·m (2.3 kgf, 17.0 lbf-ft)
10.	Oil drain plug : Apply sealant 99000-31260 to all around thread part of plug.	22.	Shift lever cap	:	Apply transaxle oil.
11.	Oil gutter	23.	Breather baffle plate	:	Do not reuse.
12.	Shim	24.	Magnet
