CPP No.2 Switch Inspection and Adjustment
Precautions: General safety (00)
Inspection
Measure resistance between terminals under each condition below. If check result is not as specified, replace switch.
CPP No.2 switch resistance

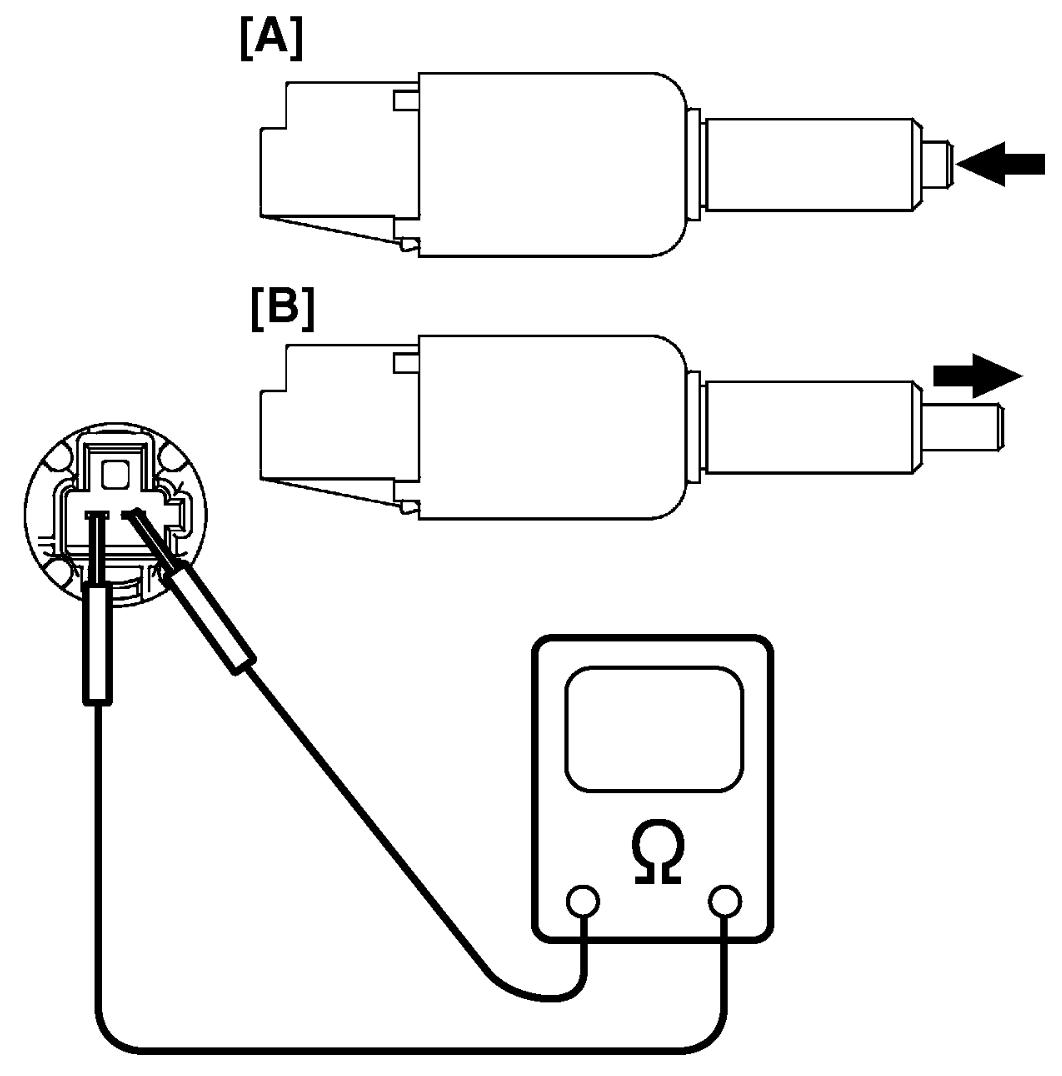

When switch shaft is pushed [A]: No continuity
When switch shaft is free [B]: Continuity exists
Adjustment

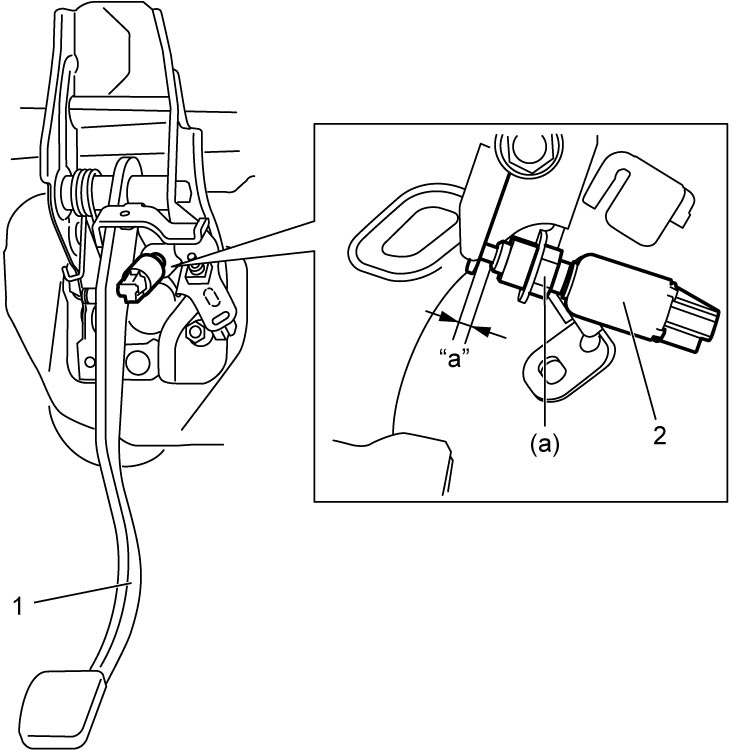

With clutch pedal (1) pulled toward driver’s seat, adjust switch (2) position so that clearance “a” between end of thread and clutch pedal arm is within specification. Then tighten lock nut to specified torque.
Clearance between end of thread and clutch pedal arm
“a”: 1.4 – 1.9 mm (0.055 – 0.076 in.)
