CPP No.2 Switch Removal and Installation
Precautions:
General safety (00)
Removal
1)
Remove driver side instrument panel undercover.
2)

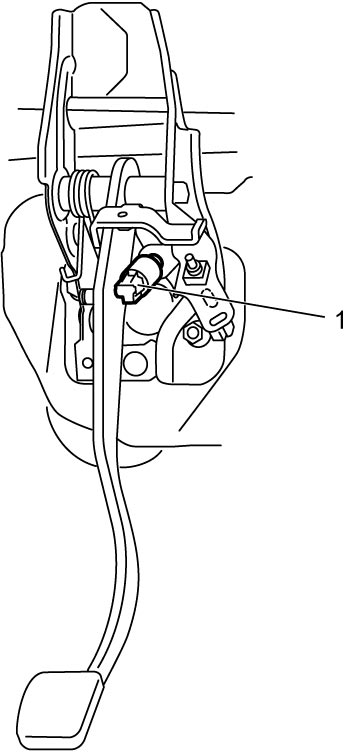

Disconnect connector of CPP No.2 switch (1) with ignition “OFF”.
3)
Remove CPP No.2 switch (1) from clutch pedal bracket.
Installation
1)
Install CPP No.2 switch to clutch pedal bracket.
2)
Adjust switch position.
3)
Connect connector to CPP No.2 switch securely.
4)
Install driver side instrument panel undercover.
