Clutch Cover and Clutch Disc Inspection
Precautions: General safety (00)
Clutch Disc

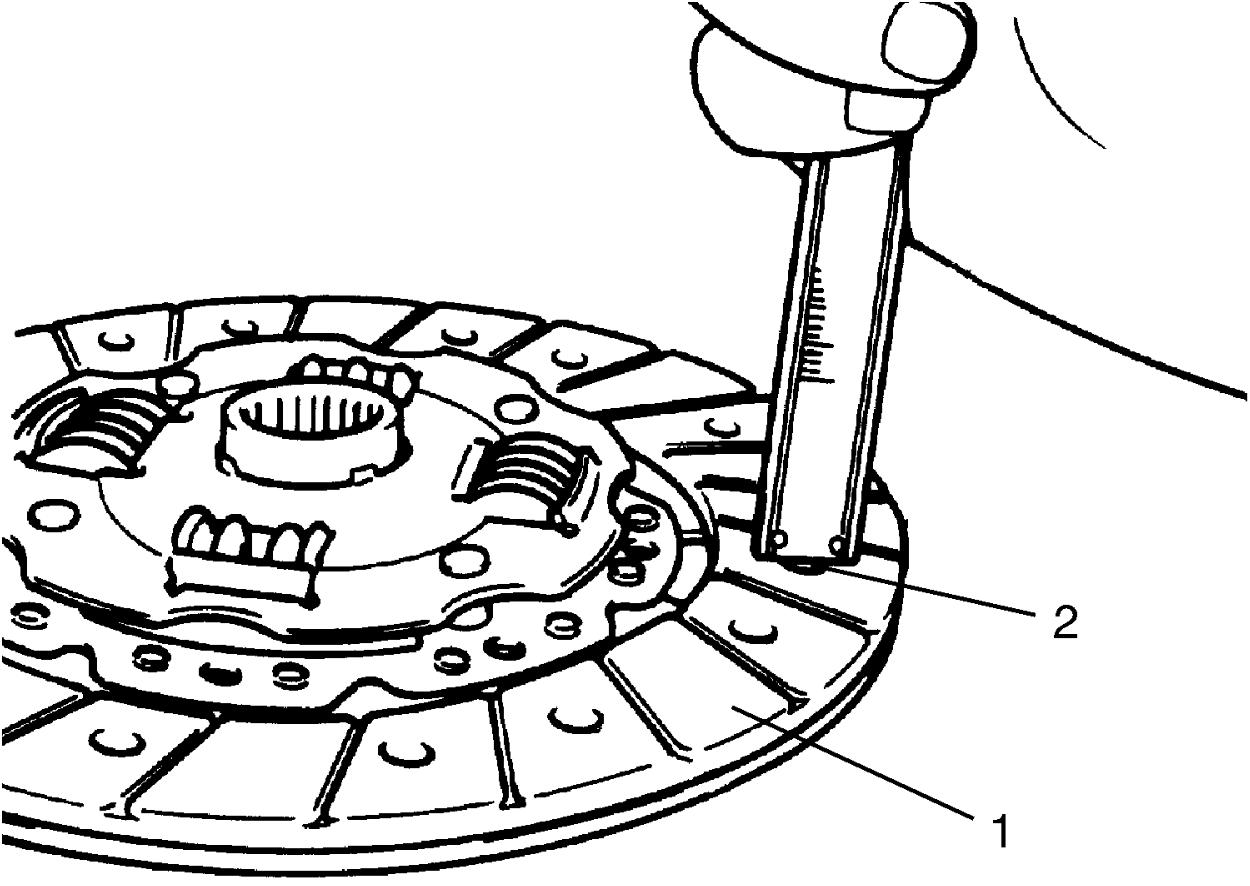

Measure depth of rivet head depression, i.e. distance between rivet head and facing surface.
If depression is found to have reached service limit at any of rivet holes (2), replace clutch disc (1).
Rivet head depth
Standard: 1.65 – 2.25 mm (0.06 – 0.09 in.)
Limit: 0.5 mm (0.02 in.)
Clutch Cover

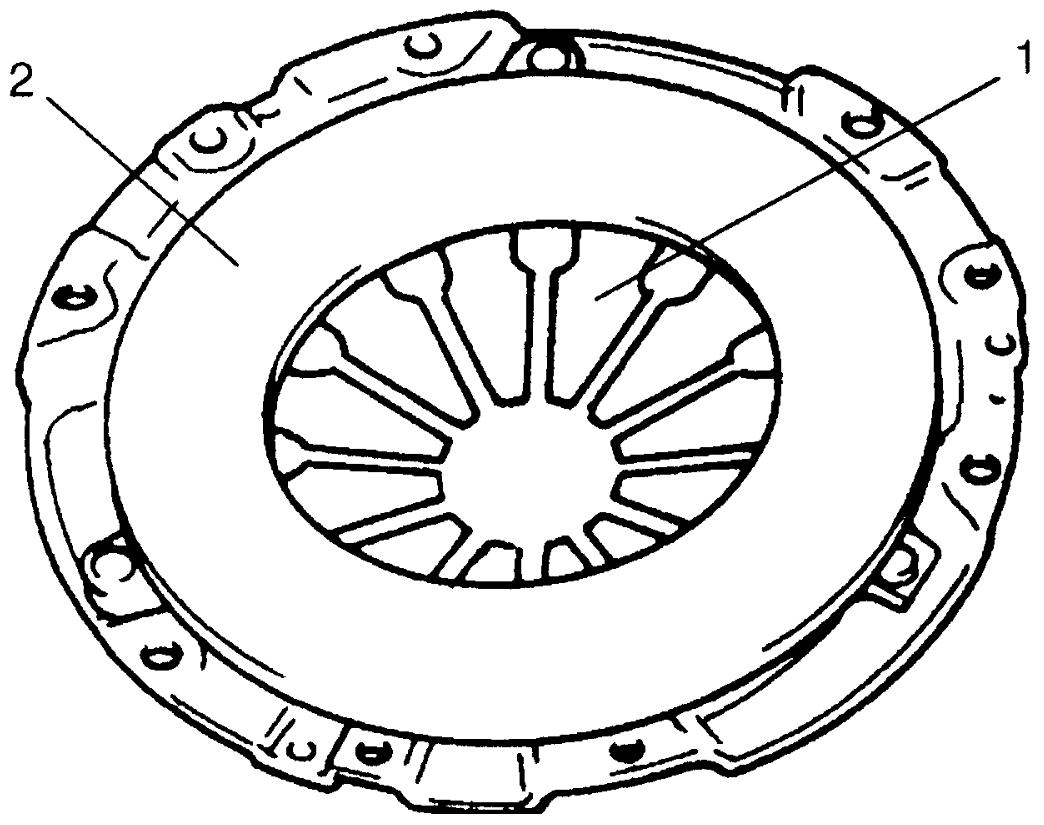

Check clutch cover as follows.
1)Check diaphragm spring (1) for abnormal wear or damage.
2)Check pressure plate (2) for wear or heat spots.
3)Replace clutch cover if defective.
Do not disassemble it into diaphragm spring and pressure plate.
Do not disassemble it into diaphragm spring and pressure plate.
