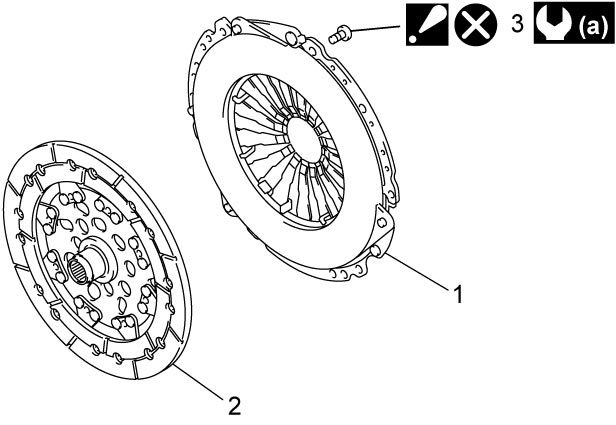

Clutch Cover and Clutch Disc Components
Precautions: General safety (00)
| 1. | Clutch cover |
| 2. | Clutch disc |
 3. |
Clutch cover bolt : For tightening order, refer to Clutch Cover and Clutch Disc Removal and Installation:D16AA-6M/T Model. |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
 : |
Do not reuse. |
