DTC P0905-01 / P0905-11 / P0905-12 / P0905-13 / P0905-16 / P0905-17 / P0905-19 / P0905-1A / P0905-1D / P0905-96 / P0906-12

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

DTC Detecting Condition and Trouble Area

DTC detecting condition	Trouble area
P0905-01: Clutch “B” Actuator Control – General Electrical Failure Internal integrated circuit (solenoid driver IC) test indicates short to power supply or open. (1 D/C detection logic)	•Even gear clutch solenoid valve circuit •Even gear clutch solenoid (solenoid valve unit) •TCM
P0905-11: Clutch “B” Actuator Control – Circuit Short to Ground Circuit is shorted to ground. (1 D/C detection logic)
P0905-12: Clutch “B” Actuator Control – Circuit Short to Battery Circuit is shorted to power supply. (1 D/C detection logic)
P0905-13: Clutch “B” Actuator Control – Circuit Open Circuit is open. (1 D/C detection logic)
P0905-16: Clutch “B” Actuator Control – Circuit Voltage Below Threshold Circuit voltage is lower than specified value. (1 D/C detection logic)
P0905-17: Clutch “B” Actuator Control – Circuit Voltage Above Threshold Circuit voltage is higher than specified value. (1 D/C detection logic)
P0905-19: Clutch “B” Actuator Control – Circuit Current Above Threshold Circuit current is higher than specified value. (1 D/C detection logic)
P0905-1A: Clutch “B” Actuator Control – Circuit Resistance Below Threshold Internal integrated circuit (solenoid driver IC) test indicates short of supply or open circuit. (1 D/C detection logic)
P0905-1D: Clutch “B” Actuator Control – Circuit Current Out of Range Circuit current is out of specified range. (1 D/C detection logic)
P0905-96: Clutch “B” Actuator Control – Component Internal Failure Internal integrated circuit (solenoid driver IC) test indicates short of supply or open circuit. (1 D/C detection logic)
P0906-12: Clutch “B” Actuator Control Circuit Range / Performance – Circuit Short to Battery Circuit is shorted to power supply. (1 D/C detection logic)

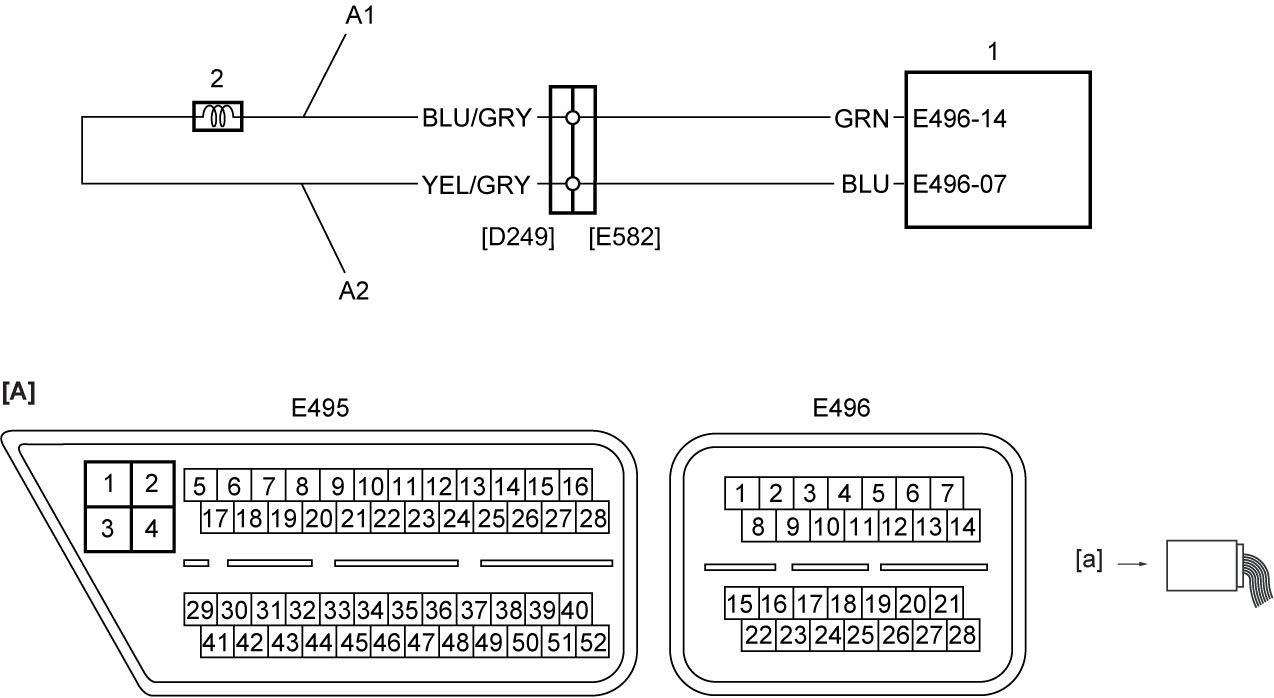

Circuit Diagram

[A]:	TCM connector (View: [a])	A2:	Even gear clutch solenoid valve ground circuit	2.	Even gear clutch solenoid valve
A1:	Even gear clutch solenoid valve drive circuit	1.	TCM

DTC Confirmation Procedure

WARNING:

If you do not select a suitable route and take proper precautions when performing a road test, an accident can occur.

•Select a level road with no traffic to minimize the risk of accident.
•Perform the test extremely carefully.
•Perform the road test with 2 persons, a driver and a tester.

1)Start engine and drive vehicle.

DTC Troubleshooting

Step	Action	Yes	No
1	Was “Twin Clutch System Check” performed?	Go to Step 2.	Go to Twin Clutch System Check.
