DTC P0917-11 / P0917-15 / P0917-1C / P0917-36 / P0917-37 / P0917-38

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

DTC Detecting Condition and Trouble Area

DTC detecting condition	Trouble area
P0917-11: Gear Shift Position Circuit High – Circuit Short to Ground Circuit is shorted to ground. (1 D/C detection logic)	•6th gear position sensor circuit •6th gear position sensor (solenoid valve unit) •TCM
P0917-15: Gear Shift Position Circuit High – Circuit Short to Battery or Open Circuit is shorted to power supply or open. (1 D/C detection logic)
P0917-1C: Gear Shift Position Circuit High – Circuit Voltage Out of Range Circuit voltage is out of specified range. (1 D/C detection logic)
P0917-36: Gear Shift Position Circuit High – Signal Frequency Too Low Signal frequency from gear shift position sensor is too low. (1 D/C detection logic)
P0917-37: Gear Shift Position Circuit High – Signal Frequency Too High Signal frequency from gear shift position sensor is too high. (1 D/C detection logic)
P0917-38: Gear Shift Position Circuit High – Signal Frequency Incorrect Invalid signal frequency is received from gear shift position sensor. (1 D/C detection logic)

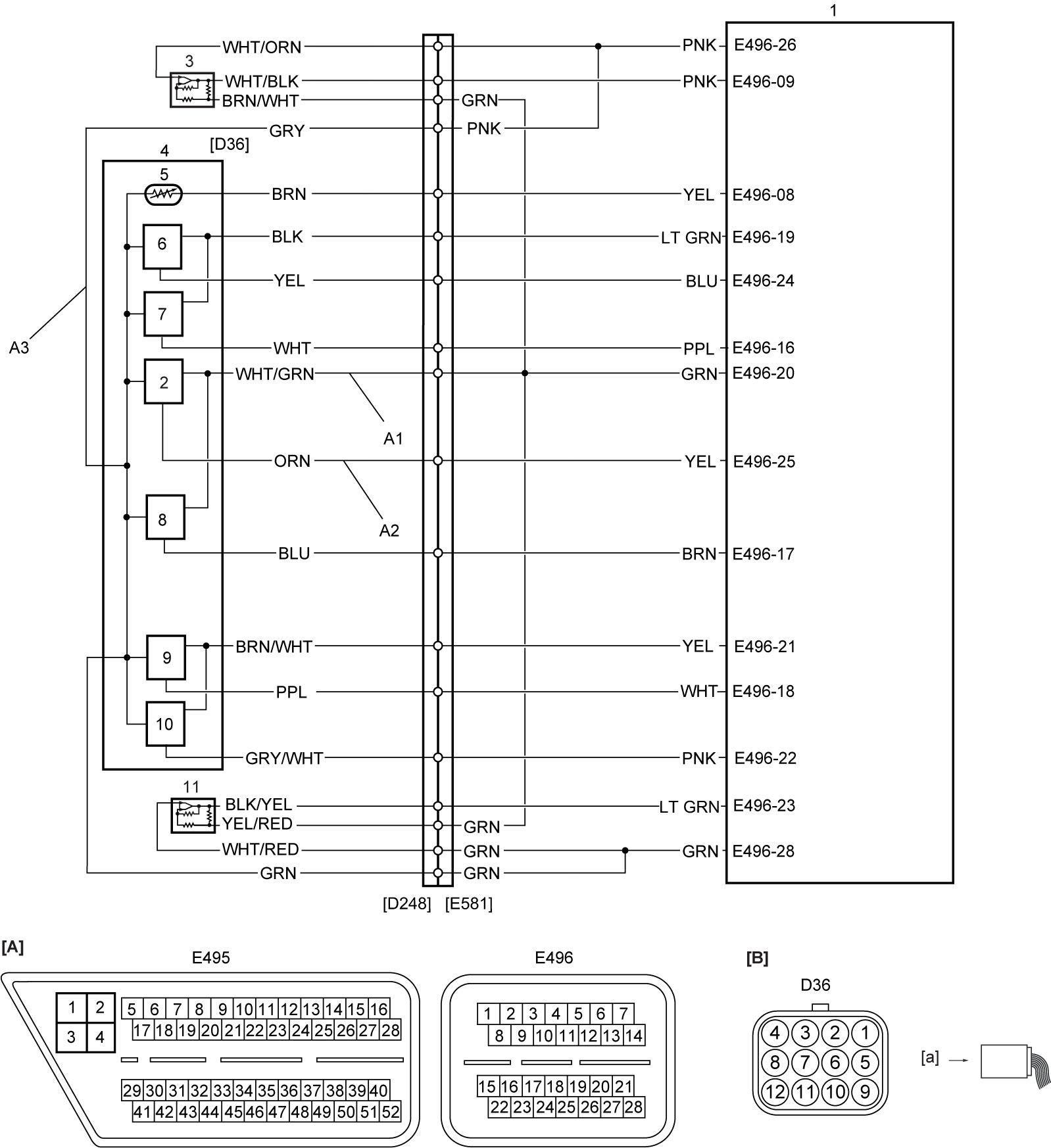

Circuit Diagram

[A]:	TCM connector (View: [a])	2.	6th gear position sensor	8.	2nd & 4th gear position sensor
[B]:	Sensor module connector (View: [a])	3.	Even gear clutch pressure sensor	9.	Even gear clutch speed sensor
A1:	6th gear position sensor power supply circuit	4.	Sensor module	10.	Odd gear clutch speed sensor
A2:	6th gear position sensor signal circuit	5.	Sensor module temperature sensor	11.	Gear select position sensor
A3:	6th gear position sensor ground circuit	6.	1st & 3rd gear position sensor
1.	TCM	7.	5th & reverse gear position sensor

DTC Confirmation Procedure

WARNING:

If you do not select a suitable route and take proper precautions when performing a road test, an accident can occur.

•Select a level road with no traffic to minimize the risk of accident.
•Perform the test extremely carefully.
•Perform the road test with 2 persons, a driver and a tester.

NOTE:

•Check that the following condition is satisfied in this procedure.

—11 V < Battery voltage < 15 V

•Check that the following DTCs are not detected in this “DTC Confirmation Procedure”.

—Even gear clutch pressure sensor (P0642-13, P0933-12, P0933-14, P0934-1C and P0935-1C)
—Sensor module temperature sensor (P0668-11, P0668-15, P19D1-62 and P19D1-64)
—Odd gear clutch speed sensor (P0715-31, P0715-61, P0715-62 and P0715-64)
—Even gear clutch speed sensor (P0716-31, P0716-61, P0716-62 and P0716-64)
—Gear select position sensor (P0904-11, P0904-15, P0904-1C, P0904-36, P0904-37, P0904-38 and P0909-1C)
—1st & 3rd gear position sensor (P0914-11, P0914-15, P0914-1C, P0914-36, P0914-37 and P0914-38)
—2nd & 4th gear position sensor (P0915-11, P0915-15, P0915-1C, P0915-36, P0915-37 and P0915-38)
—5th & reverse gear position sensor (P0916-11, P0916-15, P0916-1C, P0916-36, P0916-37 and P0916-38)
—Sensor supply voltage (P19A8-1C)

1)Start engine and drive vehicle.

DTC Troubleshooting

Step	Action	Yes	No
1	Was “Twin Clutch System Check” performed?	Go to Step 2.	Go to Twin Clutch System Check.
2	6th gear position sensor power supply circuit check 1)With ignition “OFF”, disconnect sensor module connector. 2)Check for proper terminal connection to sensor module connector. 3)If connection is OK, set ignition “ON”. 4)Check that voltage between “A1” and ground is approx. 5 V. Is check result OK?	Go to step 3.	Repair “A1” circuit. If this DTC is detected again, replace TCM and recheck DTC.
3	6th gear position sensor signal circuit and ground circuit check 1)With ignition “OFF”, disconnect “E495” and “E496” connectors from TCM. 2)Check for proper terminal connection to “E495” and “E496” connectors. 3)If connections are OK, check the following points. •Resistance of “A2” and “A3” circuits: less than 1 Ω •Resistance between each of “A2” and “A3” circuits and ground: infinity •Resistance between “A2” circuit terminal and other terminal at sensor module connector: infinity •Resistance between “A3” circuit terminal and other terminal at sensor module connector: infinity •Voltage of “A2” and “A3” circuits: approx. 0 V (When ignition is “ON”) Is check result OK?	Replace 6th gear position sensor (solenoid valve unit). If this DTC is detected again, replace TCM and recheck DTC.	Repair or replace defective wire harness.
